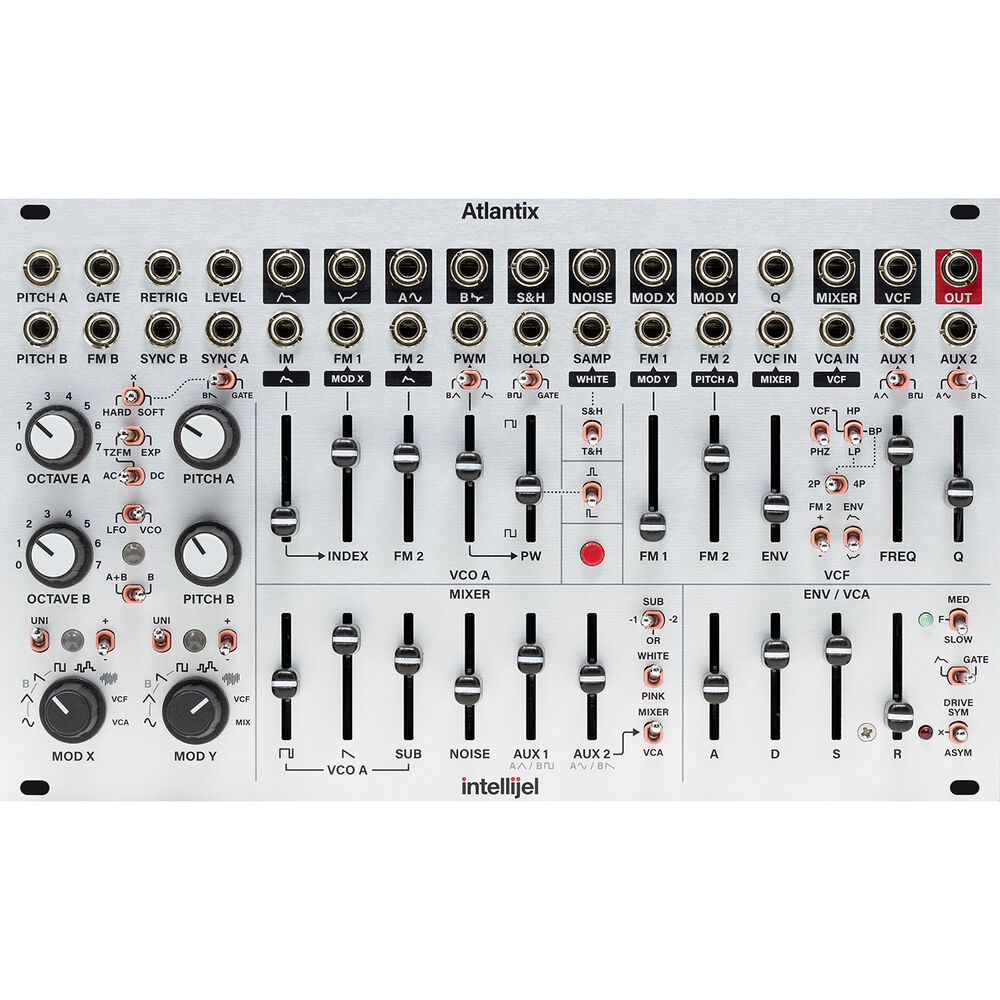

intellijel Atlantix Analog Synth Voice Eurorack Module (42 HP)

At a Glance

• Cascaded 4-pole multimode filter with LP2, BP2, LP4, BP4, HP4, and Phaser modes
• Two Triangle Core VCOs
• VCO A: Thru-Zero FM with INDEX and PWM, Hard/Soft Sync, Octave switch
• VCO B: Linear FM, LFO/VCO switch, Hard Sync, Octave switch
• Suboscillator with three modes spanning two octaves
• White and Pink noise sources
• Six-channel mixer comprising VCO A Waveforms, Sub, Noise, and two Aux inputs
• Aux inputs have switched normals with sources from VCO A and B for quick paraphonic play without patching
• Mixer Aux 2 can be routed post-VCF / pre-VCA
• Mod X and Y buses allow for quick modulation routing of VCO B, S&H, Noise, and feedback sources without patching
• Both Mod X and Y buses have polarity and level-shifting switches
• Analog ADSR envelope with three time ranges, manual gate, and level (velocity) input
• Patchable Sample and Hold modulation source
• Asymmetric and symmetric output distortion modes
• 20 sliders, 4 knobs, 27 toggles, and 2 rotary switches for expressive hands-on control
• 32 jacks for creative and complex patching options
• 16 additional jacks with the optional Atlx expander

Oscillators-Advanced TZFM and Flexible Mixer

• The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source, or stack it as a secondary VCO, all by the flick of a switch or slider. VCO B also has a bonus spike waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.
• In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.
• The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sinewave is mixed with the filtered audio to make glassy tones with some added harmonics.



Multimode Filter

• The filter section (VCF) is a discrete cascaded 4-pole multimode filter with low-pass, band-pass, high-pass, and phaser (multi-notch) modes. The filter can self-oscillate, which produces a very clean sinewave that also tracks 1V/oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope, and have switches for polarity.
• Add Atlx for dedicated outputs from each mode.

Envelope-Classic ADSR

The envelope section is an analog ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the center of the panel. The ADSR is routed through the VCA, which can be used for level or velocity control, and through the Filter for Frequency control.

Modulation-Random, Feedback, and Built-In Routing

• Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.
• Four of the Input jacks have normal switches to change your patch without the need for cables.
• The analog Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Drive and Distortion

The output VCA can be routed into two different distortion circuits, which allow for harmonically richer and more aggressive tones while also boosting signal levels.

Atlx-Optional Expander with Ring Mod

The Atlx expander provides 16 additional jacks to the Atlantix, including dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Eurorack Ready

• 42 HP Eurorack format module
• Maximum depth: 1" (25mm)
• Includes power ribbon cable with Eurorack power headers
• Power consumption: +12V: 140mA, -12V: 138 mA

intellijel ATLANTIX-3U Specs

Sound Generation	Analog
Audio I/O	3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
MIDI I/O	No
CV/Gate I/O	2x 1/8" / 3.5 mm TS Pitch CV Input 1x 1/8" / 3.5 mm TS Gate Input 1x 1/8" / 3.5 mm TS Trigger Input 15x 1/8" / 3.5 mm TS Modulation CV Input 8x 1/8" / 3.5 mm TS CV Output
Patch Points	21x 1/8" / 3.5 mm TS Input 11x 1/8" / 3.5 mm TS Output
Eurorack Current Consumption	140 mA on +12 V Rail 138 mA on -12 V Rail
Horizontal Pitch	42 HP

Item Type	Eurorack Module
Sound Generation	Analog
Expression Controls	No
Number of Pads	No
Built-In Speaker	No

Oscillators	2x Variable (FM, Noise, PWM, Sawtooth, Sine)
Mixer	Oscillator, Oscillator 2, Noise, External Audio (Level)
Amplifiers	1x VCA
Envelopes	1x VCA/Assignable Envelope Generator: Attack, Decay, Sustain, Release
Filters	Number of Filters: 1 per Patch Characteristic: Analog Type: Low-Pass, Band-Pass, Notch, High-Pass Slope: 4-Pole/24 dB (HPF/LPF/BPF) Controls: Cutoff, Resonance
LFOs	Number of LFOs: 1x Global per Voice

Sequencer	No
Arpeggiator	No

Audio I/O	3x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output 2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
MIDI I/O	No
CV/Gate I/O	2x 1/8" / 3.5 mm TS Pitch CV Input 1x 1/8" / 3.5 mm TS Gate Input 1x 1/8" / 3.5 mm TS Trigger Input 15x 1/8" / 3.5 mm TS Modulation CV Input 8x 1/8" / 3.5 mm TS CV Output
Patch Points	21x 1/8" / 3.5 mm TS Input 11x 1/8" / 3.5 mm TS Output
Sync I/O	No

Power Requirements	Eurorack Power
Eurorack Current Consumption	140 mA on +12 V Rail 138 mA on -12 V Rail

Horizontal Pitch	42 HP
Included Accessories	No

Package Weight	1.325 lb
Box Dimensions (LxWxH)	10.3 x 6.7 x 3.2"
