Description

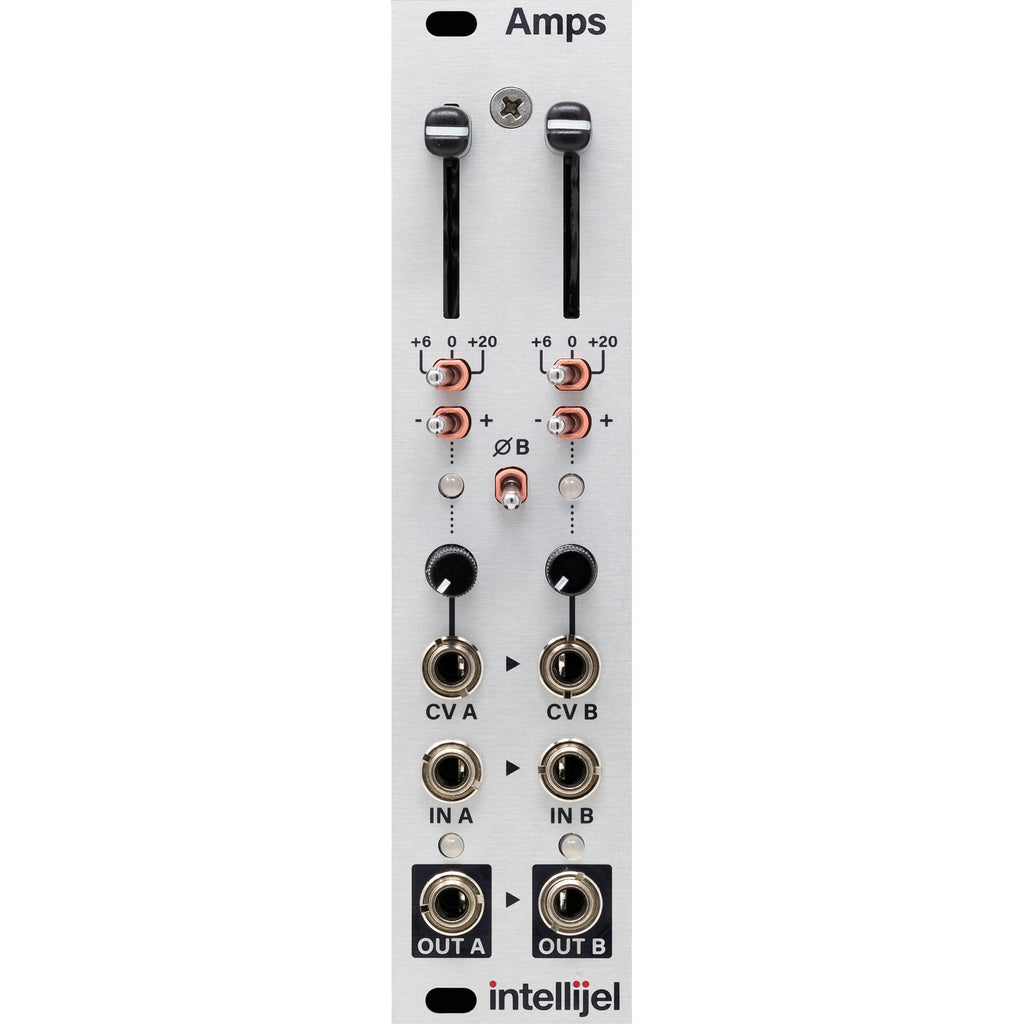

intellijel AMPS-3U Overview
Shape your audio and CV signals with the intellijel Amp, a dual multifunction and chainable voltage-controlled amplifier (VCA) in Eurorack format. Amps utilizes two precision linear VCAs that have been carefully designed to offer a wealth of flexibility and additional functionality. The front-panel controls and signal normals allow these two VCAs to be configured to function as: line level boosters, crossfaders, ring modulators, mixers, and much more. They can also be chained together with other Amps modules by way of an included cable to form larger, more complex systems.
Amps features cascaded CV inputs and cascaded mix outputs, allowing it to be used in a number of versatile configurations. A Boost switch enables you to amplify each VCA's input by either +6 or +20 dB, which is ideal for boosting low-amplitude signals or pleasingly overdriving audio. A phase-inversion switch for the second channel allows Amps to function as a ring modulator. The CV normalization, which can also be inverted and offset, also allows for VC-Crossfader functionality. The module includes a power ribbon cable.
- Manual LEVEL slider per VCA�convenient when using the module as a mixer or for biasing the signal for CV (such as when modulating the VCA with a bipolar LFO)
- Dedicated CV attenuators with dual-color LEDs for monitoring bipolar CV signals
- Linear response curve
- Input and CV normalling of VCA A to VCA B to allow a single source to feed and/or control both VCAs
- Output normalling of VCA A to VCA B to allow both VCAs to feed a single output
- Each VCA has a boost switch that can increase the output level by either +6 or +20 dB
- Phase Invert switch on VCA B allows for ring modulation capabilities
- CV Invert switch on both VCAs allows for crossfading one signal into another
- 4-pin link connectors on the rear panel allow for multiple AMPS modules to be chained together to create a 4-channel, 6-channel mixer, etc.
- 6 HP Eurorack format module
- Maximum depth: 1.4" (36mm) or 1.7" (42mm) with 4-pin cable attached
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 40mA, -12V: 46mA
In the Box
- intellijel Amps Dual Multifunction and Chainable VCA Eurorack Module (6 HP)
- Ribbon Power Cable
- 4-Pin Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
intellijel AMPS-3U Specs
| Sound Generation |
Analog
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
40 mA on +12 V Rail
46 mA on -12 V Rail |
| Horizontal Pitch |
6 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
2x VCA
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
40 mA on +12 V Rail
46 mA on -12 V Rail |
| Horizontal Pitch |
6 HP
|
| Included Accessories |
No
|
| Package Weight |
0.315 lb
|
| Box Dimensions (LxWxH) |
5.7 x 3.3 x 3.1"
|
