Description

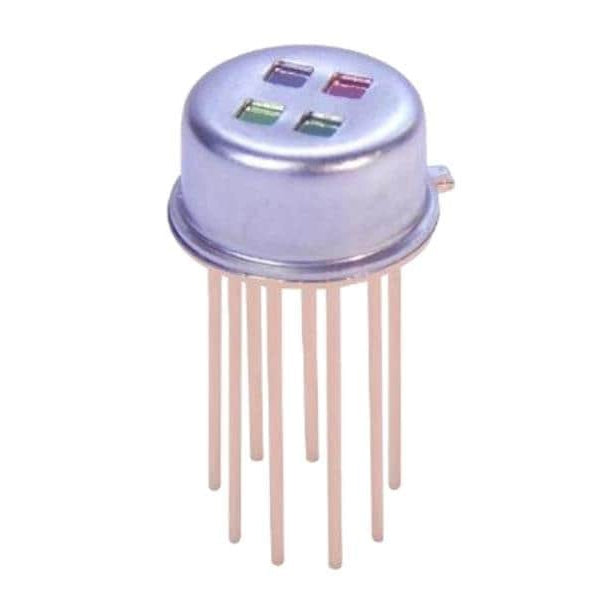

Infrared Detectors Quad channel sensor for HC (hydrocarbon), CO (carbon monoxide) and CO2 (carbon dioxide).
Features & Specs
- Sensor Characteristics:
- 1.4mm x 1.44mm filter aperture
- 700μm x 325μm element size
- TO39 package
- 100000V/W responsivity (10Hz, 500K, and room temperature)
- Opamp with 10GΩ feedback resistor
- Electrical Characteristics:
- 2.7V to 5V voltage range
- Svib~1 μV/g at 10Hz microphonics
- Temperature range:
- -40 to 85°C operating range
- -40 to 110°C storage range
Features & Specs
- Sensor Characteristics:
- 1.4mm x 1.44mm filter aperture
- 700μm x 325μm element size
- TO39 package
- 100000V/W responsivity (10Hz, 500K, and room temperature)
- Opamp with 10GΩ feedback resistor
- Electrical Characteristics:
- 2.7V to 5V voltage range
- Svib~1 μV/g at 10Hz microphonics
- Temperature range:
- -40 to 85°C operating range
- -40 to 110°C storage range
