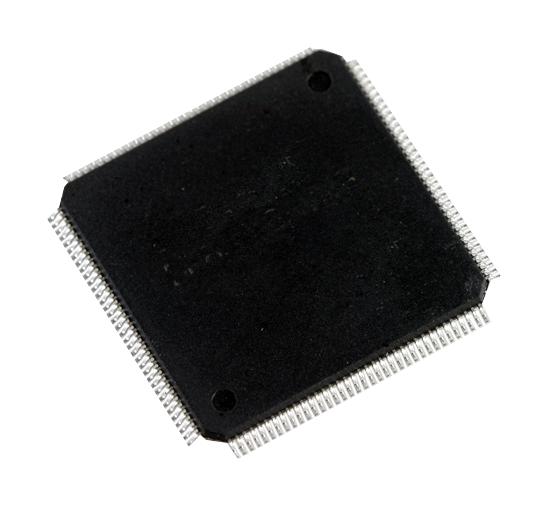

INFINEON XMC4800F144K1024AAXQMA1 MCU, ARM Cortex-M4F, 32 bit, 144MHz, 200KB RAM/1MB Program, 3.13-3.63V in, LQFP-144

XMC4800F144K1024AAXQMA1 is a XMC4000 family of microcontroller based on the ARM Cortex-M4 processor core. The growing complexity of today's energy efficient embedded control applications are demanding microcontroller solutions with higher performance CPU cores featuring DSP and FPU capabilities. The XMC4800 family of microcontrollers take advantage of Infineon's decades of experience in the industrial market to provide an optimized solution to meet the performance challenges of today's embedded control applications. First-ever EtherCAT ® node on an ARM ® Cortex ®-M microcontroller with on-chip flash and analogue/mixed signal capabilities.

• ARM ® Cortex ®-M4 @ 144MHz, 1024KB flash, 200KB RAM
• Data and IP protection on flash, supply voltage range from 3.13V to 3.63V
• EtherCAT ® node, 6 x CAN nodes
• EthernetMAC, USB-OTG, SD/MMC, 6 channel USIC (configurable to SPI, UART, IIC, IIS)
• External bus unit, 4 x 12bit ADC, 26 input channels, 4 x parallel sampling and conversion
• 2 channel 12bit DAC, 4 channel ?? demodulator
• 24 x 16bit special purpose timers, dead time generation, 2 x position interface, watchdog timer
• Watch dog timer, real time clock, SDIO/SD/MMC interface
• Operating temperature range from -40°C to 125°C
• LQFP144 package
