XDP710001XUMA1 is a XDP710 wide input voltage hot swap and system monitoring controller IC that drives a single or multiple parallel N-Channel MOSFETs. In addition to a controlled turn ON, XDP710 provides continuous system health monitoring and communication to the main MCU via the PMBus interface. The high-speed communication through PMBus allows system designers to disable the downstream sub-systems fully or partially. Potential applications include server and datacentre, 24V - 48V industrial systems, power distribution systems, intelligent e-fuse, network router, and switches.
- Compatible with Infineon's OptiMOS�, compatible with Infineon's linear FET
- Wide input voltage range from 5.5V to 80V
- Transient withstand up to 100V for 500ms, dedicated current and voltage ADCs 12bit
- Programmable and pre-set FET active SOA protection
- Integrated gate driver and charge pump for external N-Channel MOSFET
- Configurable fast FET's shut down two step turn-off or 1.5A pull-down current
- PMBus interface 1MHz, precision input and output voltage monitoring and reporting <=1%
- Energy monitoring and reporting, programmable input and output OV and UV protections
- Support for external temperature sensor and OT protection, sequential turn-on capability

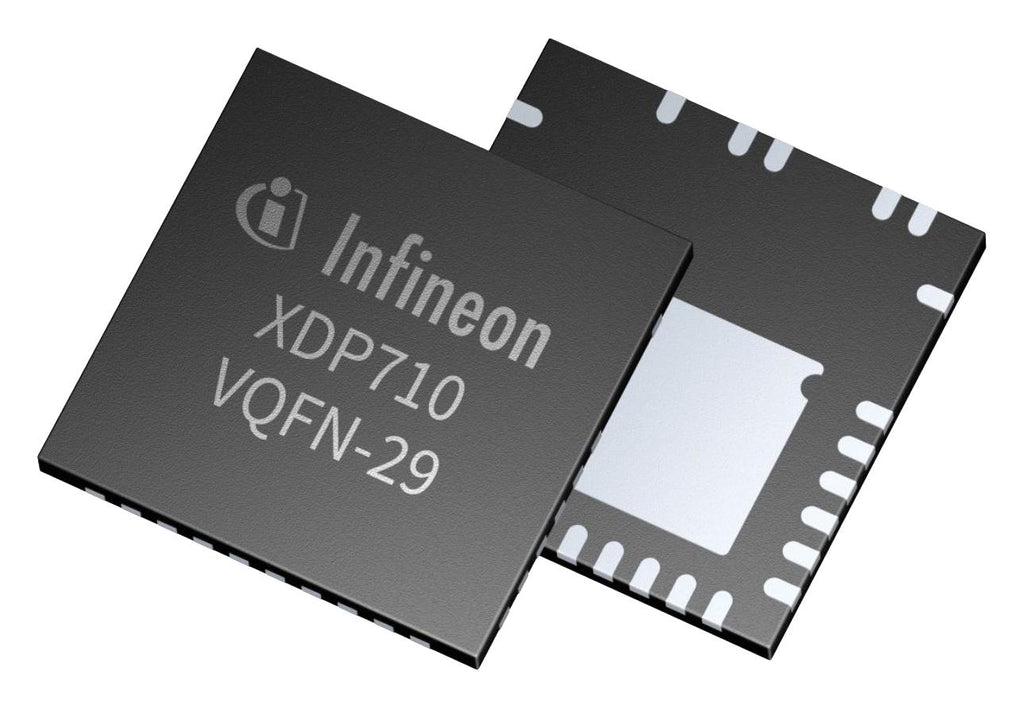

- 29-lead VQFN package, junction temperature range from -40°C to 125°C
Other details
| Brand |
INFINEON |
| Part Number |
XDP710001XUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
