Description
Product Overview

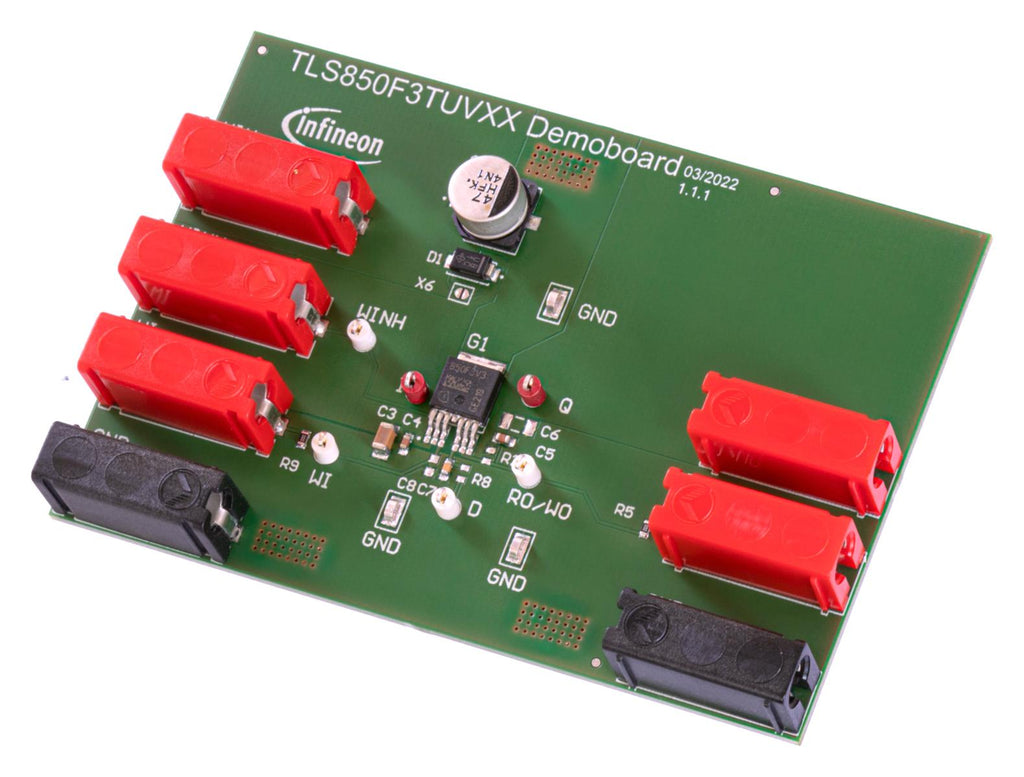

TLS850F3TUV33BOARDTOBO1 is an OPTIREGTM linear voltage regulator TLS850F3TUV33 demo board used during the design-in process for evaluating the TLS850F3TUV33 from Infineon Technologies AG. Suitable for telematics systems, ADAS cameras and radar systems, navigation systems and body control modules applications.
- Output voltage of 3.3V ±2%
- Current capability is 500mA
- Input voltage range from 3V to 42V
- Stable with 1µF ceramic output capacitor
- Ultra low current consumption is typically 26µA
- Very low drop out voltage is typically 100mV at 100mA
- Watchdog circuit for monitoring a microprocessor and watchdog inhibit
- Output voltage supervision by reset circuit with programmable delay time
- Output current limitation
- Overtemperature shutdown
Product details
Other details
| Brand | INFINEON |
| Part Number | TLS850F3TUV33BOARDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
