Description

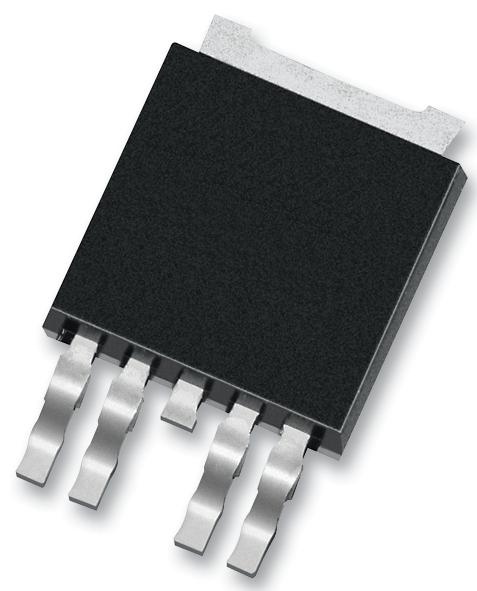

The TLS850B0TEV50 is a high performance, very low dropout linear voltage regulator for 5V supply in a PGTO252-5 package. The input voltage range of 3V to 40V and a very low quiescent current of 20µA make it the perfect match for automotive or other supply systems connected to the battery permanently. The new loop concept combines fast regulation and very high stability. Below an output current of 100mA the typical dropout voltage is below 100mV. The operating range starts at an input voltage of only 3V. The device can be switched on and off by the Enable feature.
- Wide input voltage range from 3.0V to 40V
- Fixed output voltage 5V
- Output voltage accuracy more than ±2%
- Output current capability up to 500mA
- Ultra low current consumption, typical 20µA
- Very low dropout voltage, typical 100mV at 100mA
- Stable with ceramic output capacitor of 1µF
- Enable
- Overtemperature shutdown
- Output current limitation
- Wide temperature range
Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | TLS850B0TEV50ATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
