Description
Product Overview

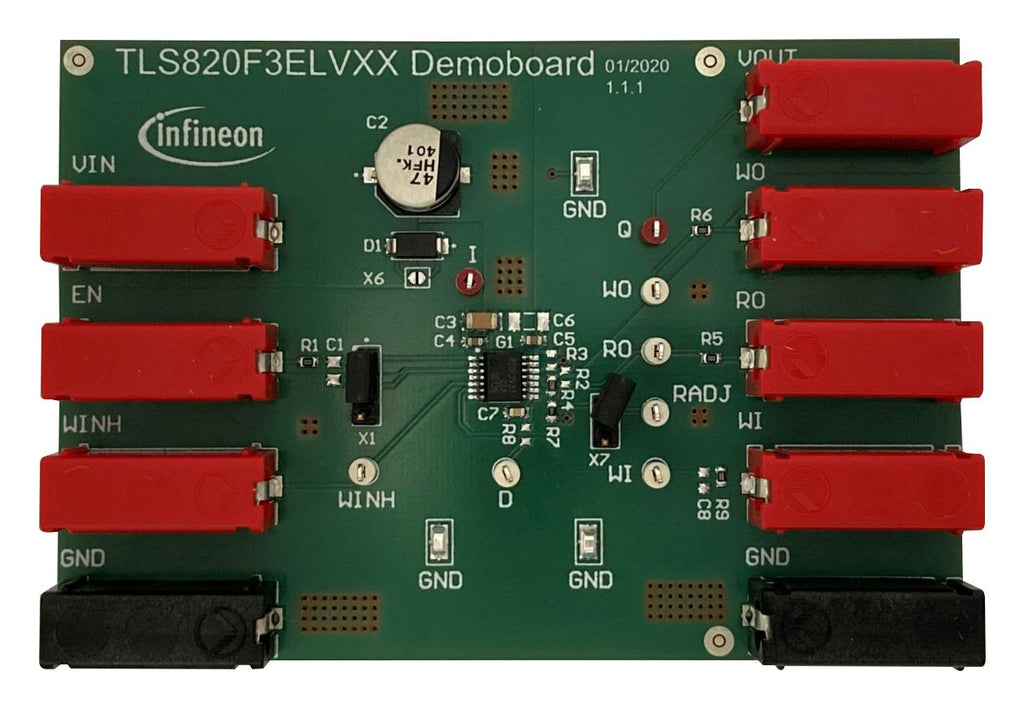

TLS820F3ELV50BOARDTOBO1 is a OPTIREGTM linear voltage regulator TLS820F3ELV50 demo board is to be used during the design-in process for evaluating the TLS820F3ELV50 from Infineon Technologies AG.
- Output voltage of 5V
- Current capability of 200mA
- Input voltage range from 3V to 42V
- Stable with 1?F ceramic output capacitor
- Ultra low current consumption: typically 26?A
- Very low drop out voltage: typically 100mV at 100mA
- Watchdog circuit for monitoring a microprocessor, watchdog inhibit
- Reset circuit supervises the output voltage
- Separate outputs for reset and watchdog
- Enable, output current limitation, overtemperature shutdown
Product details
Other details
| Brand | INFINEON |
| Part Number | TLS820F3ELV50BOARDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
