Description
Product Overview

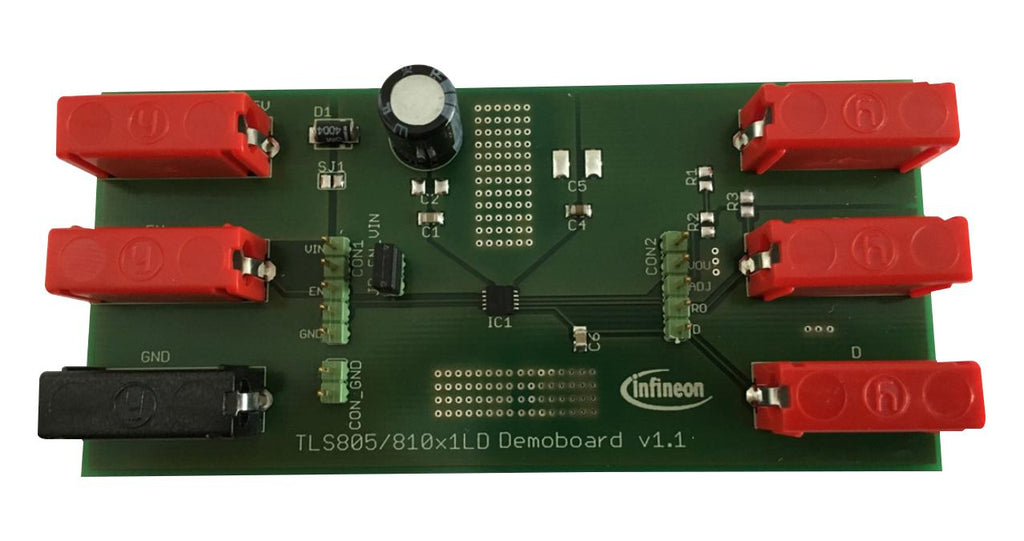

TLS810A1LDV33BOARDTOBO1 is a linear voltage regulator featuring wide input voltage range, low drop out voltage and ultra low quiescent current. With an input voltage range of 2.75V to 42V and ultra low quiescent of only 5?A, the regulator is perfectly suitable for automotive or any other supply systems connected permanently to the battery. The TLS810A1LDV33 is the fixed 3.3V output version with an accuracy of 2% and output current capability up to 100 mA. The new regulation concept implemented in TLS810A1 combines fast regulation and very good stability while requiring only a small ceramic capacitor of 1?F at the output. The tracking region starts already at input voltages of 2.75V (extended operating range). This makes the TLS810A1 also suitable to supply automotive systems that need to operate during cranking condition.
- Low drop out voltage of typ. 250mV at 100mA
- Fast regulation
- Very good stability characteristics
- Output current limit protection
- Overtemperature shutdown
- AEC Qualified
Product details
Other details
| Brand | INFINEON |
| Part Number | TLS810A1LDV33BOARDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7481.08 |
| 3-5 | ₹ 7404.74 |
| 5-10 | ₹ 7252.06 |
| 10+ | ₹ 7099.39 |
Bulk discount will be automatically applied during checkout based on quantity.
