Description
Product Overview

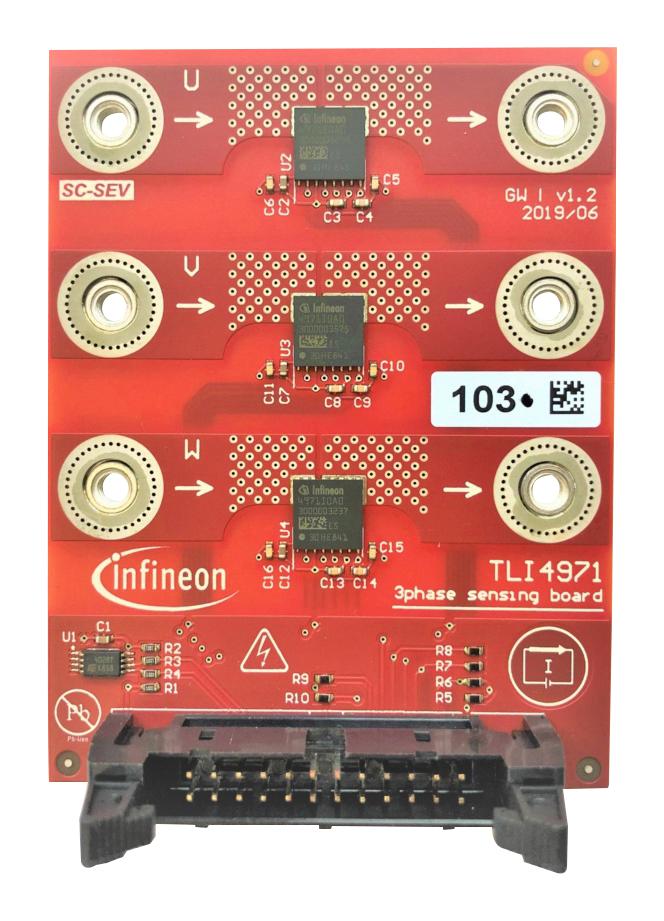

TLI4971EVAL120ATOBO1 is a XENSIV� - TLI4971 EVAL 120A board for evaluation of three-phase systems. The TLI4971 EVAL 120A board is a current sensor evaluation board suitable for evaluating three-phase systems, with running currents up to 120A*. The board is equipped with three internal current rail TLI4971-A120T5-E0001 sensors assembled on top of the PCB. The board is to be used either standalone or interconnected with the Infineon TLE4972 current sensor programmer tool, link to. The board comes assembled with SMD high current connectors & M4 screws for properly attaching and securing the high-current cables or busbars. The TLI4971 sensors are suitable for measuring both DC currents and AC currents with frequencies up to 240KHz. The low internal current rail resistance (225µ?) allows a minimal power dissipation compared to shunt measurement system, while maintaining an isolated interface rated at 1150V peak VIORM.
- Measurement of three-phase currents, up to 120A via internal current rail
- Based on TLI4971-A120T5-E0001 current sensors
- Compatible with the TLE4972 current sensor programmer tool evaluation tool
- Sensor settings programmable sensors, e.g. using the TLE4972 current sensor programmer tool
- Standalone use OR together with the TLE4972 current sensor programmer tool
Product details
Other details
| Brand | INFINEON |
| Part Number | TLI4971EVAL120ATOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13735.68 |
| 3-5 | ₹ 13595.52 |
| 5-10 | ₹ 13315.2 |
| 10+ | ₹ 13034.88 |
Bulk discount will be automatically applied during checkout based on quantity.
