TLE4929CXANM28HAMA1 is an AEC qualified crankshaft sensor. It is an active hall sensor ideally suited for crankshaft applications and similar industrial applications, such as speedometers or any speed sensor with high accuracy and low jitter capabilities. The fully programmable crankshaft sensor is qualified for automotive usage. It has two integrated capacitors on the lead frame. This capacitor increases the EMC resistivity of the device. A pull-up resistor RLoad is mandatory on the output pin and determines the maximum current through the output transistor. Application includes TLE4929C an active Hall sensor ideally suited for crankshaft applications and similar industrial applications, such as a speedometer or any speed-sensor with high accuracy and low jitter capabilities.
- Measures speed and position of tooth/pole wheels
- Switching point in middle of the tooth enables backward compatibility
- Magnetic stray-field robustness due to differential sensing principle
- Digital output signal with programmable output-protocol including diagnosis interface
- Direction detection and stop-start-algorithm
- High accuracy and low jitter, high sensitivity enable large air gap
- End-of-line programmable to adapt to engine parameters
- Can be used as a differential camshaft sensor, wide automotive operating temperature range
- PG-SSO-3-52 package
- Junction temperature range from -40 to 185°C (exposure time max. 10 � 1 h, VDD = 16V)
Other details
| Brand |
INFINEON |
| Part Number |
TLE4929CXANM28HAMA1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

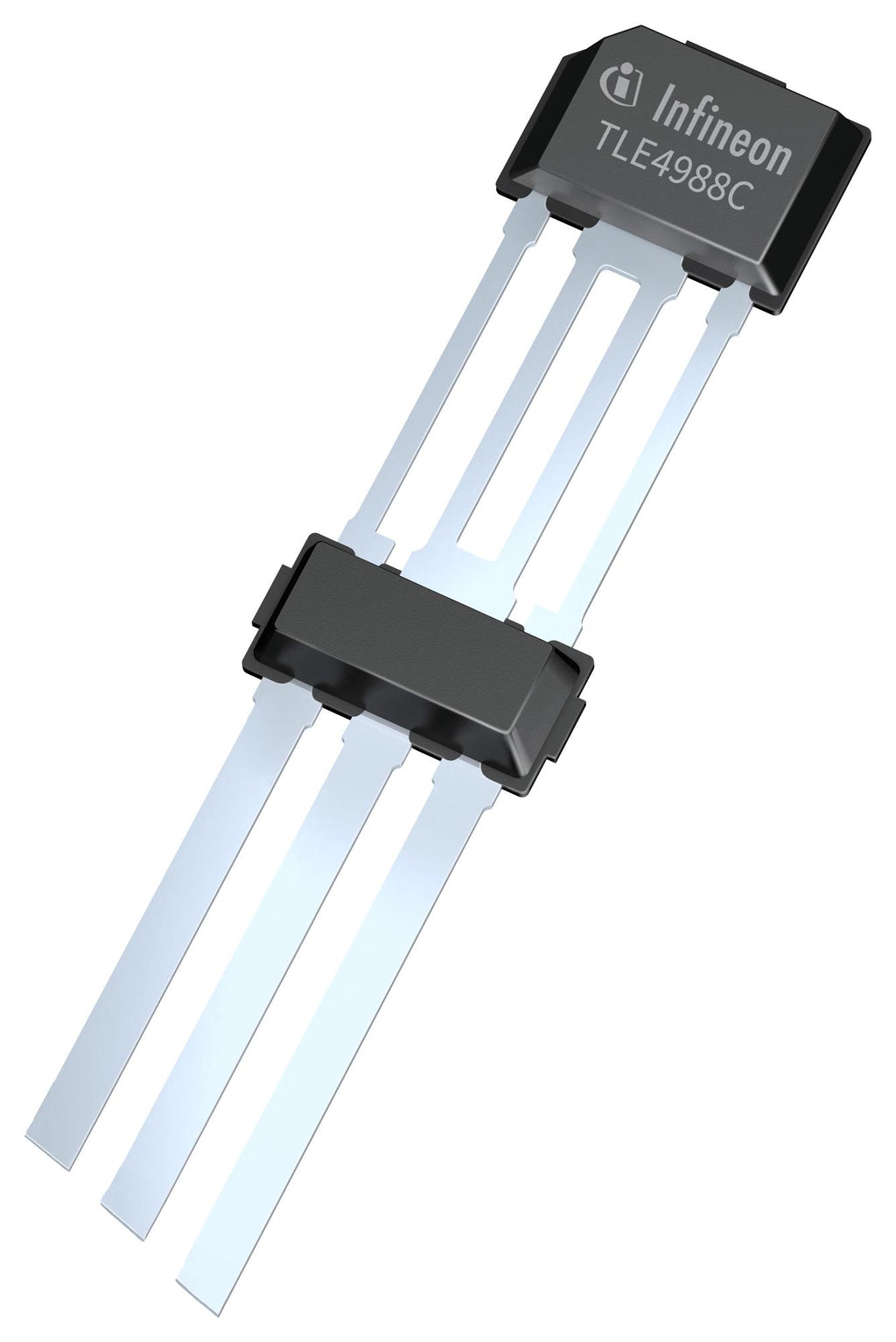

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
