Description

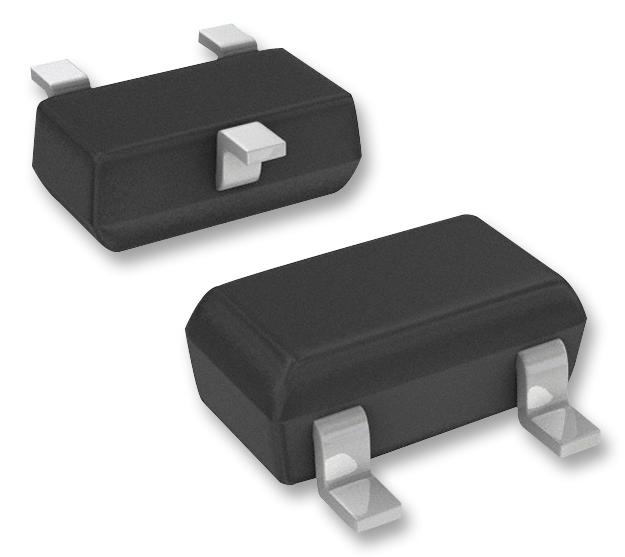

The TLE4913 is an integrated low power Hall-Effect Switch designed specifically to meet the requirements of low-power devices. Precise magnetic switching points and high temperature stability are achieved through the unique design of the internal circuit. An onboard clock scheme is used to reduce the average operating current of the IC. During the operate phase the IC compares the actual magnetic field detected with the internally compensated switching points. The output Q is switched at the end of each operating phase. During the stand-by phase the output stage is latched and the current consumption of the device reduced to some µA. The IC switching behaviour is Omni-polar, it can be switched-ON with either the North or South pole of a magnet.
- Micro power design
- High sensitivity and high stability of the magnetic switching points
- High resistance to mechanical stress
- Digital output signal
- Switching for both poles of a magnet
Sensing & Instrumentation, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | TLE4913HTSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
