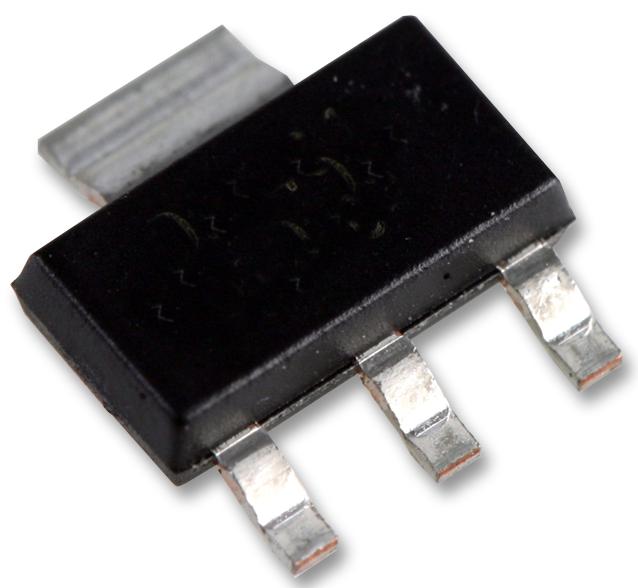

Monolithic integrated low dropout fixed voltage regulator for load currents up to 100mA. It is functional compatible to the TLE4264, but has a reduced quiescent current of typ 40µA. The TLE42644 is especially designed for applications requiring very low standby currents e.g with a permanent connection to the car's battery. The device is designed for the harsh environment of automotive applications.
- Output voltage 5V ±2% up to output currents of 50mA
- Very low dropout voltage
- Very low current consumption: typ 40µA
- Output current limitation
- Reverse polarity protection
- Overtemperature shutdown
- Wide temperature range from -40°C up to 150°C
- Suitable for use in automotive electronics
- AEC qualified
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
TLE42644GHTMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
