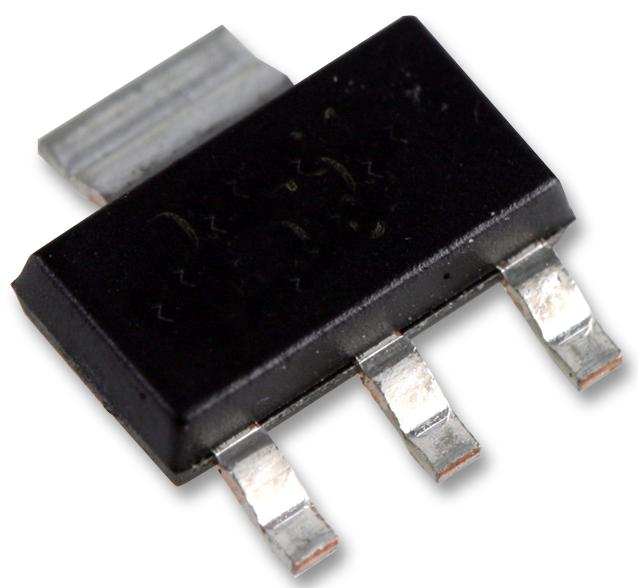

TLE4264-2G is a monolithic integrated low-drop fixed voltage regulator which can supply loads up to 150mA. It is functional compatible to the TLE4264 but has a reduced quiescent current of typ 40µA. The TLE4264-2 is especially designed for all applications which require very low quiescent currents. Suitable for use in general automotive applications.
- Output voltage tolerance <= ±3% (±2% up to 50mA)
- Low-drop voltage
- Overtemperature protection
- Short-circuit proof
- Reverse polarity proof
- Qualified for automotive applications. Product validation according to AEC-Q100/101
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
TLE42642GHTMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
