| ₹ 191.25 includes GST and import duties. | |
| B2B customers can avail ₹ 29.17 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

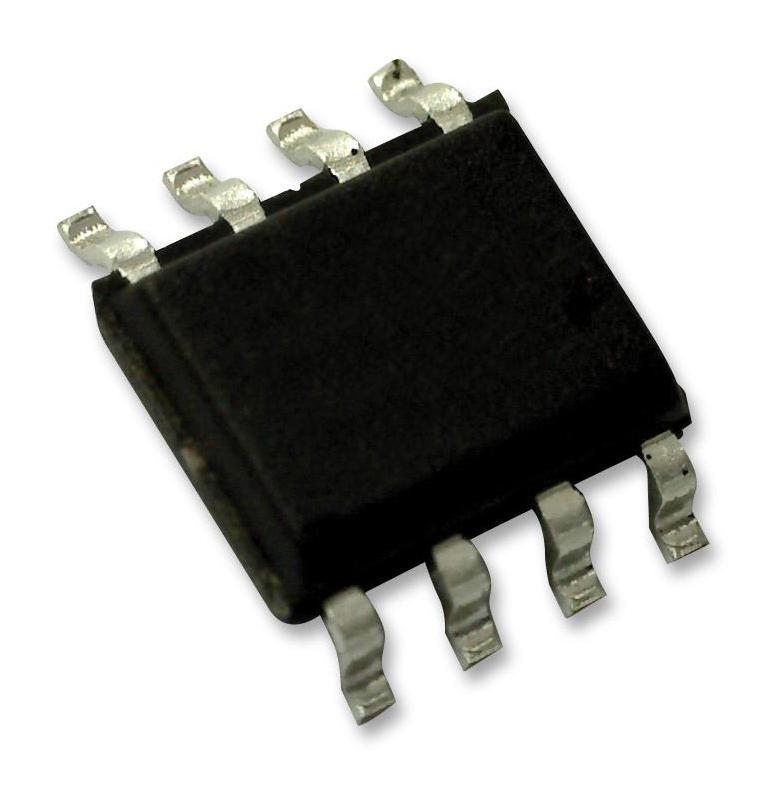

The TLE4263-2ES is a 5V fixed output very low-dropout (LDO) Linear Regulator. The device is able to drive loads up to 180mA. The device is short-circuit proof by the implemented current limitation and has an integrated overtemperature shutdown. It additionally provides features like power-ON and undervoltage reset with adjustable reset threshold, a watchdog circuit for monitoring a connected microcontroller and an inhibit input for enabling or disabling the component. The reset output RO is set to "low" in case the output voltage falls below the reset switching threshold VQ,rt. This threshold can be decreased down to 3.5V by an external resistor divider. The power-ON reset delay time can be programmed by the external delay capacitor CD. The watchdog circuit provides a monitoring function for microcontrollers.
- <=±2% Output voltage tolerance
- Very low standby current consumption
- Power-ON and undervoltage reset with programmable delay time
- 1V Reset low down (VQ)
- Reverse polarity protection
- AEC Qualified
- Green product and no Sb/Br
Automotive, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | TLE42632ESXUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 187.43 |
| 3-5 | ₹ 185.51 |
| 5-10 | ₹ 181.69 |
| 10+ | ₹ 177.86 |
Bulk discount will be automatically applied during checkout based on quantity.
