Description
The TLE4251D is a monolithic integrated low dropout Voltage Tracker designed to supply sensors under the severe conditions of automotive applications. Therefore the device is equipped with additional protection functions against overload, short circuit and reverse polarity. Supply voltages up to 40V are tracked to a reference voltage given to the adjust input via an external resistor. The output is able to drive loads up to 400mA while it follows the 5V output of a main voltage regulator within an accuracy of 0.5%. For loads up to 300mA the tracking accuracy is 0.2%. The TLE 4251 can be switched in stand-by mode via the enable EN input which causes the current consumption to drop to very low values. This feature makes the IC suitable for low power battery applications.
- Enable function
- Very low current consumption in OFF mode
- Output protected against short circuit
- Overtemperature protection
- Reverse polarity proof
- <=±0.2% Output tracking tolerance
Power Management, Industrial, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | TLE4251DATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

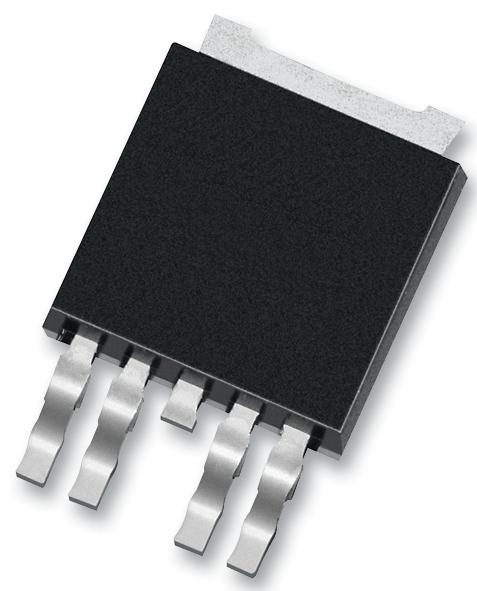

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
