Description
Product Overview

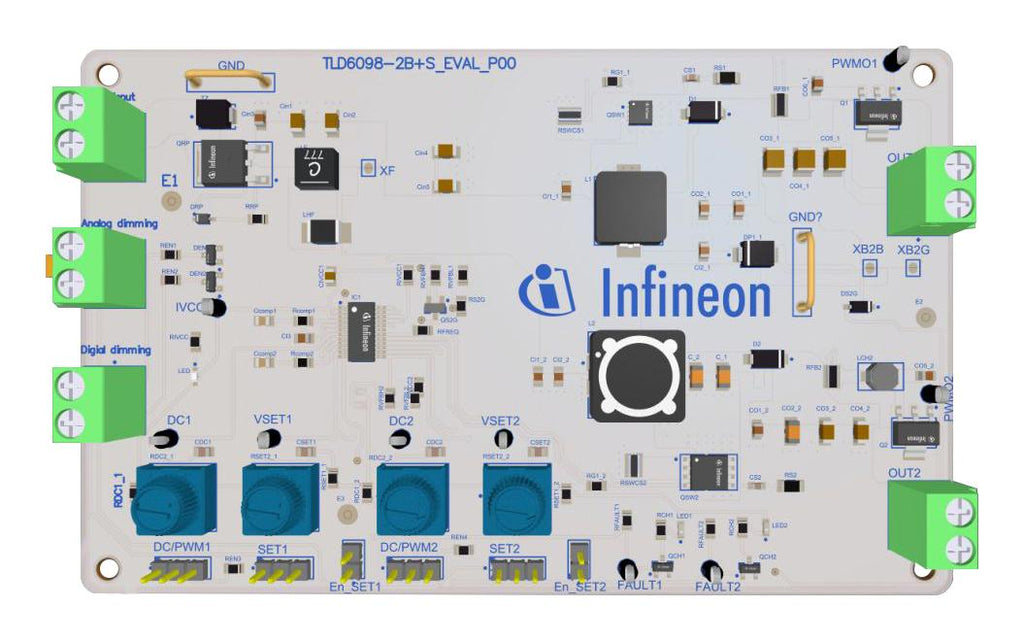

TLD60982BSEVALTOBO1 is a TLD6098-2B+S evaluation board designed as LED driver in boost (channel-1) and SEPIC (channel-2). It can deliver up to 50 W (25 W per channel). The two channels are independent. Suitable for LED lighting, high beam/low beam, daytime running light/position light, voltage pre-regulator applications.
- Output current up to 1A on both the channels
- 2 independent channels (channel-1 in boost and channel-2 in SEPIC)
- Integrated EMI filter
- Integrated reverse polarity protection
- Wide input range (from 8V to 27V)
- Wide output voltage ranges (from 3V to 59V)
- Easy to use
- No need for filtering
- Fully protected against reverse polarity
Product details
Other details
| Brand | INFINEON |
| Part Number | TLD60982BSEVALTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17900.72 |
| 3-5 | ₹ 17718.06 |
| 5-10 | ₹ 17352.74 |
| 10+ | ₹ 16987.42 |
Bulk discount will be automatically applied during checkout based on quantity.
