Description
Product Overview

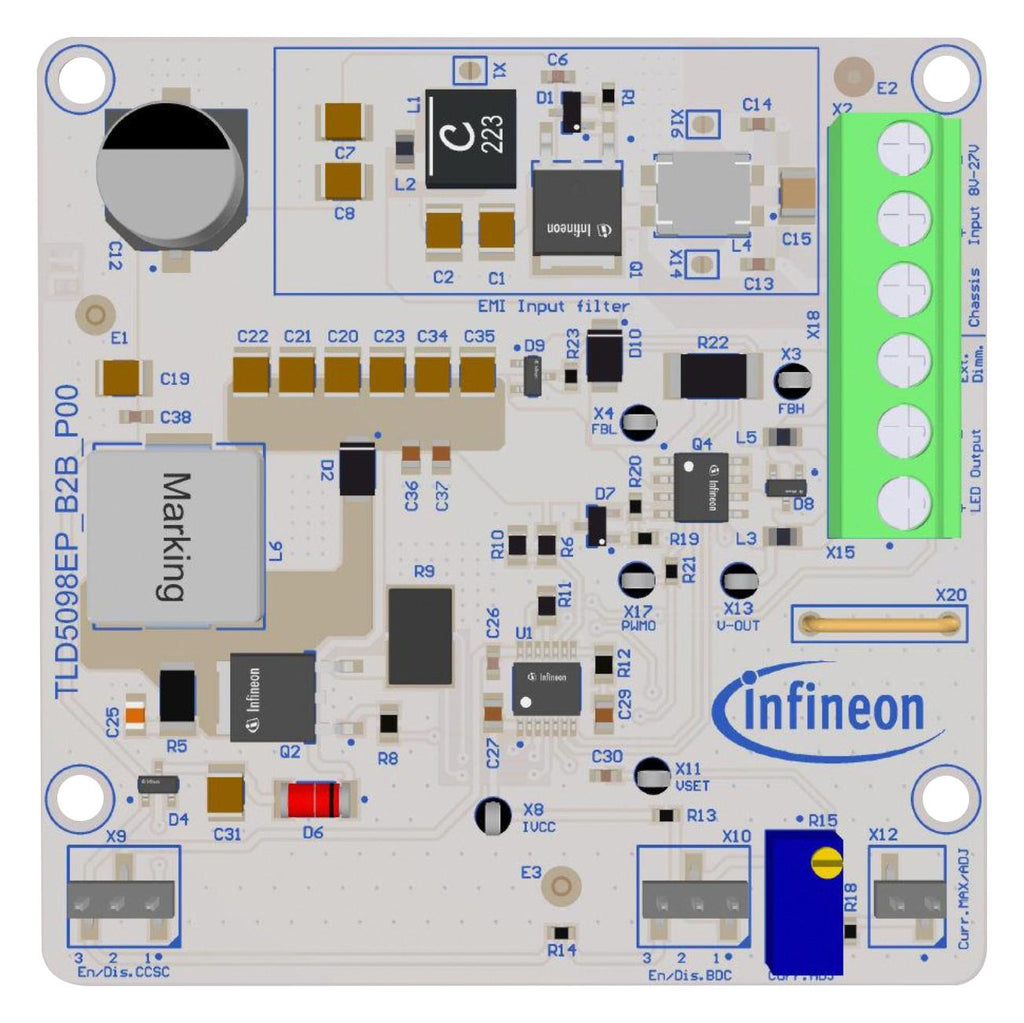

TLD5098EPB2BEVALKITTOBO1 is a TLD5098EP evaluation board in boost to battery topology designed as LED driver. It can deliver up to 21 W with efficiency above 85%. The board is also equipped with the following features, enabled by jumpers: output current adjustment trimmer, power Derating Circuitry and Cold Crank Survival Circuit (CCSC). Targeted for lighting and automotive applications.
- 1A max Iout
- Output voltage rang from 16V to 23V
- AEC qualified
- Supply voltage range from 8V to 27V
Product details
Other details
| Brand | INFINEON |
| Part Number | TLD5098EPB2BEVALKITTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
