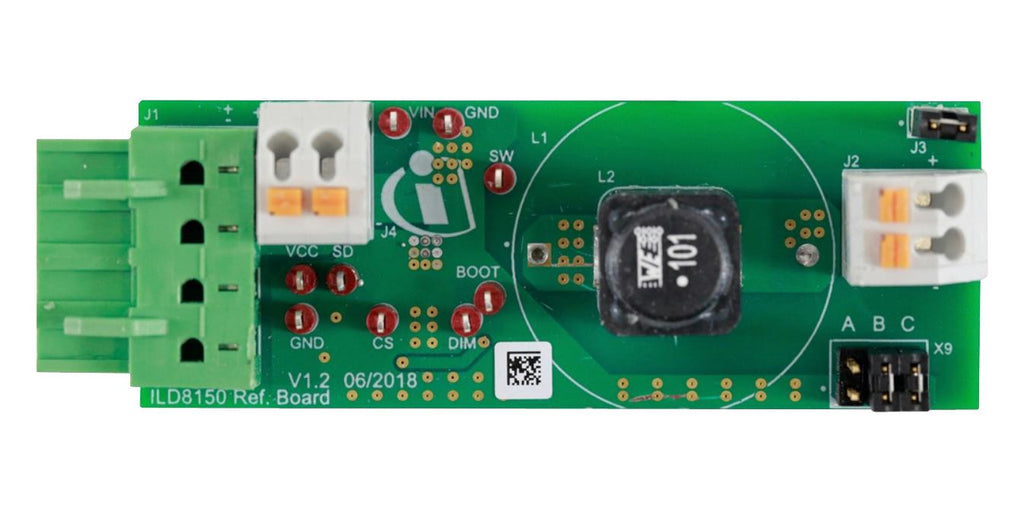

REFILD8150DC15ASMDTOBO1 is a reference design board features ILD8150E, a 80V LED driver IC with an innovative hybrid dimming method. The LED driver IC provides a high safety voltage margin, especially for applications operating close to safety extra low voltage (SELV) limits. Several performance and protection features provide the right fit for professional LED lighting.
- Wide input voltage range from 8 to 80V
- Capable to provide output current up to 1A
- Frequency range is 300 - 600kHz
- Up to 2MHz switching frequency
- Digital soft-start, PWM dimming input up to 20kHz and Hybrid output dimming
- Very low LED current drift over temperature
- Undervoltage lockout, Cycle by cycle current limit
- Overtemperature protection
Other details
| Brand |
INFINEON |
| Part Number |
REFILD8150DC15ASMDTOBO1 |
| Quantity |
Each |
| User Manual EN |
 |
