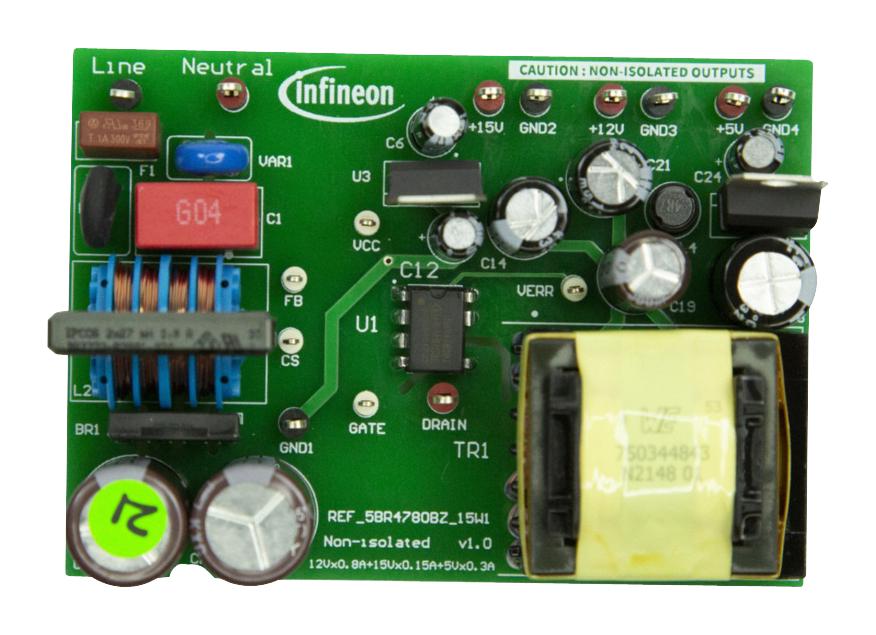

REF_5BR4780BZ_15W1 is an auxiliary power supply reference design configured in a flyback topology and is based on the ICE5BR4780BZ, a product of Infineon's 5th generation fixed frequency CoolSET family. The power supply supports an input range up to 264VAC with 15V/150mA, 12V/800mA and 5V/300mA non-isolated output. Due to the integrated 800V MOSFET, such a design enables the deployment to unstable grid environments and increases system robustness.
- 15W non-isolated flyback auxiliary power supply for residential outdoor aircon
- > 75% full-load efficiency at 230VAC
- Multi-output support for IPM gate driver, relay, MCU and miscellaneous biasing needs
- Ease of design and BOM reduction thanks to an integrated error amplifier
Other details
| Brand |
INFINEON |
| Part Number |
REF5BR4780BZ15W1TOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
