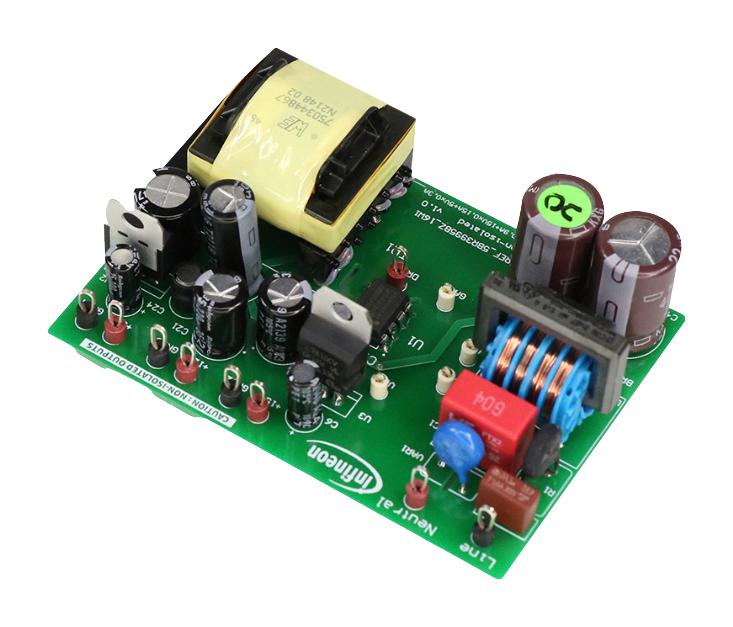

REF_5BR3995BZ_16W1 is an auxiliary power supply reference design configured in a flyback topology and is based on the ICE5BR3995BZ, a member of Infineon's 5th generation fixed frequency CoolSET� family. The power supply supports an input range up to 264VAC with 15V/150mA, 12V/900mA and 5V/300mA non-isolated output. Due to the integrated 950V MOSFET, such a design enables the deployment to unstable grid environments and increases system robustness.
- 16W non-isolated flyback auxiliary power supply for outdoor residential aircon
- > 75% full load efficiency at 230VAC
- Multi-output support for IPM gate driver, relay, MCU and miscellaneous biasing needs
- Ease of design and BOM reduction with an integrated error amplifier
Other details
| Brand |
INFINEON |
| Part Number |
REF5BR3995BZ16W1TOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
