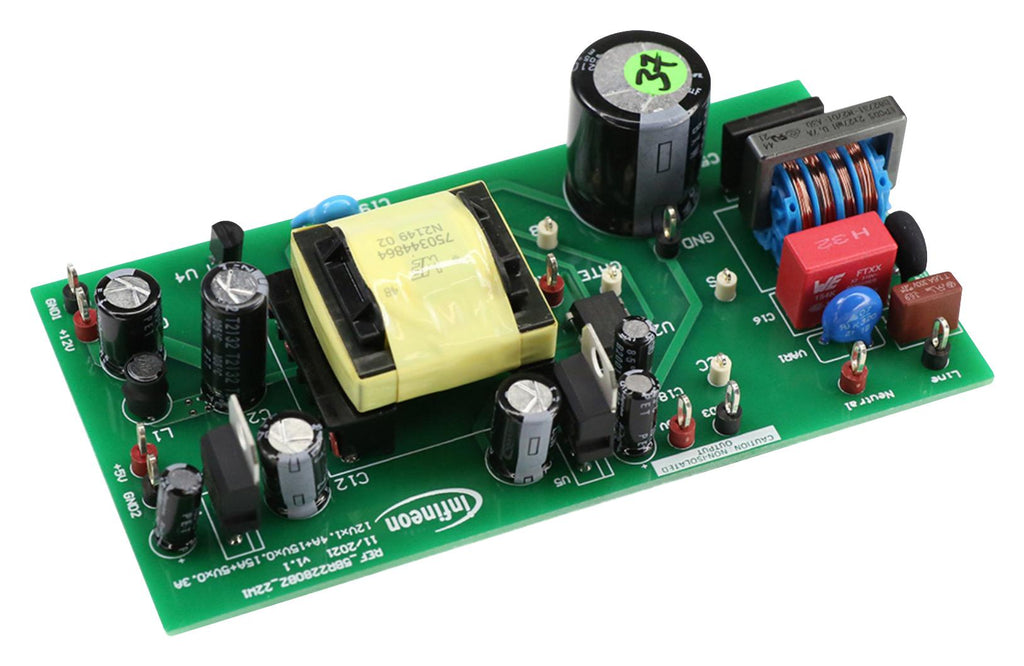

REF_5BR2280BZ_22W1 is an auxiliary power supply reference design configured in a flyback topology and is based on the ICE5BR2280BZ, a member of Infineon's 5th generation fixed frequency CoolSET� family. The power supply supports an input range up to 264VAC with 15V/0.15A, 12V/1.4A and 5V/0.3 A output. Due to the integrated 800V MOSFET, such a design enables the deployment to unstable grid environments and increases system robustness.
- 22W isolated flyback auxiliary power supply for residential indoor aircon
- > 81% full-load efficiency at 230VAC
- Multi-output support for IPM gate driver, relay, MCU and miscellaneous biasing needs
- Ease of design and BOM reduction with an integrated error amplifier
Other details
| Brand |
INFINEON |
| Part Number |
REF5BR2280BZ22W1TOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
