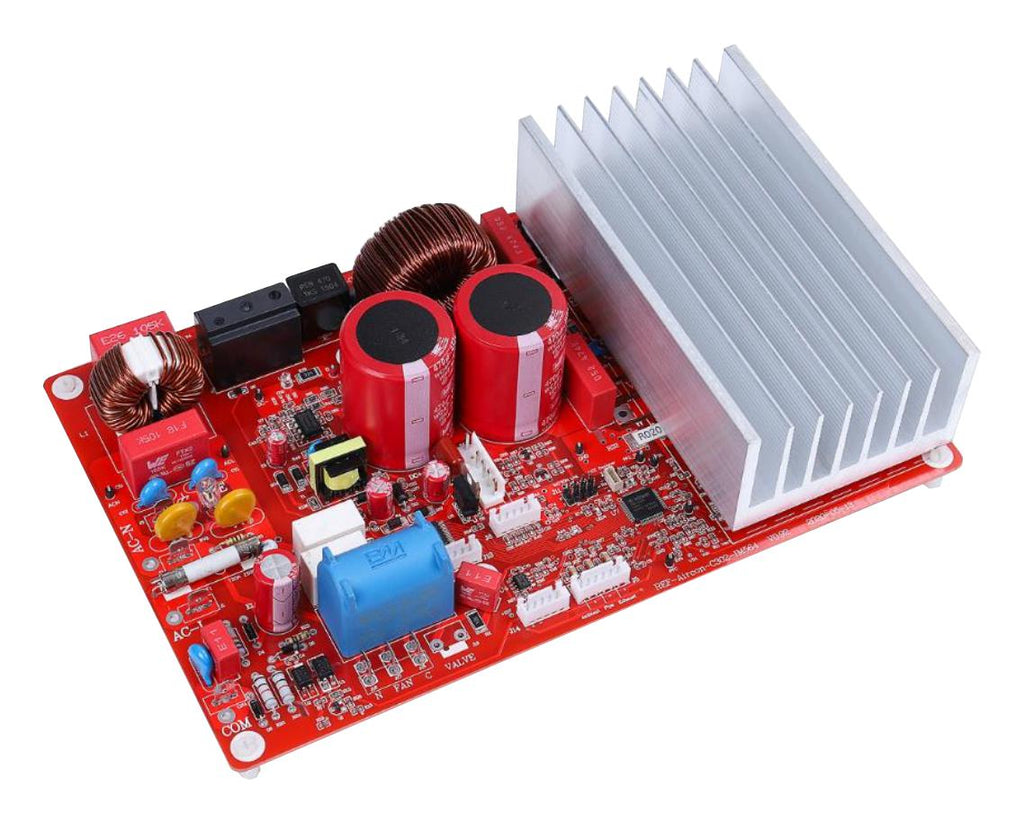

3-phase turnkey motor drive for air conditioner outdoor units (ODU) with an IMC302 iMOTION� controller, a CIPOS� Mini IPM IM564-X6D inverter with integrated PFC stage, a 1ED44175 gate driver for the PFC stage and a CoolSET� ICE5AR4770BZS for the auxiliary supply. The reference board enables customer to design more efficient ODUs with smaller form factors compared to discrete implementations. Moreover the IMC302 iMOTION� controller provides a fully featured motor control (MCE2.0) which allows to reduce development cycle time by concentrating on application development rather than on basic motor control.
- Typical 1400W motor power with heatsink cooling
- Maximum 2500 W motor power with forced convection
- Input voltage rage of 85 to 265VAC including on-board auxiliary voltage supply
- On-board inductor for 40~60 Khz PFC operation
- Control interfaces to external BLDC or AC fan, 4-way valve and temperature sensor
- Communication interface to indoor unit (IDU)
- Overcurrent and over temperature protection and a fault diagnostic LED output
- Small 2-layer PCB with 250 mm × 157 mm
- Easy-to-use iMOTION� control firmware
Other details
| Brand |
INFINEON |
| Part Number |
REF-AIRCON-C302A-IM564 |
| Quantity |
Each |
| User Manual EN |
 |
