INFINEON KITT2GC-2D-4MLITE Evaluation Kit, CYT3DLBBHBES, Traveo T2G, 32bit, ARM Cortex-M7F, Cortex-M0+ KIT_T2G_C-2D-4M_LITE, SP005922725

KITT2GC-2D-4MLITE is a TRAVEO� T2G Cluster 4M Lite Kit. It is a low-cost evaluation board for the TRAVEO� T2G CYT3DL device with on-board Miniprog4 for program and debug functionalities. The CYUSB3014-BZXC converts the RGB display signals into USB packets. The RGB frames can then be viewed by running a media player application on a PC. Typical applications include instrument cluster, Cockpit, two-wheelers, commercial, construction and agricultural vehicles (CAV). Typical applications include instrument cluster, cockpit, two-wheelers, commercial, construction and agricultural vehicles (CAV).

• Pmod connector to support external RMII Ethernet Phy(DP83848)
• On-board Miniprog4 for program and debug functionalities
• On-board CYUSB3014-BZXC to stream RGB display signals to PC through USB packets
• High-speed Serial Memory interface using flash (S26HL) and RAM (S27KL)
• Multiple interfaces like Arduino, Mikrobus, 2x Shield-2-Go and a raspberry pi are supported
• LVDS connector to support G070Y2 FPD display
• LVDS connector to support OV5640 MIPI camera
• Potentiometer, LEDs and buttons to test basic functionalities
• Quick solution to rapidly develop an instrument cluster prototype using TRAVEO� T2G CYT3DL device
• Display output can be viewed in PC, thereby removing the need of physical displays

Contents

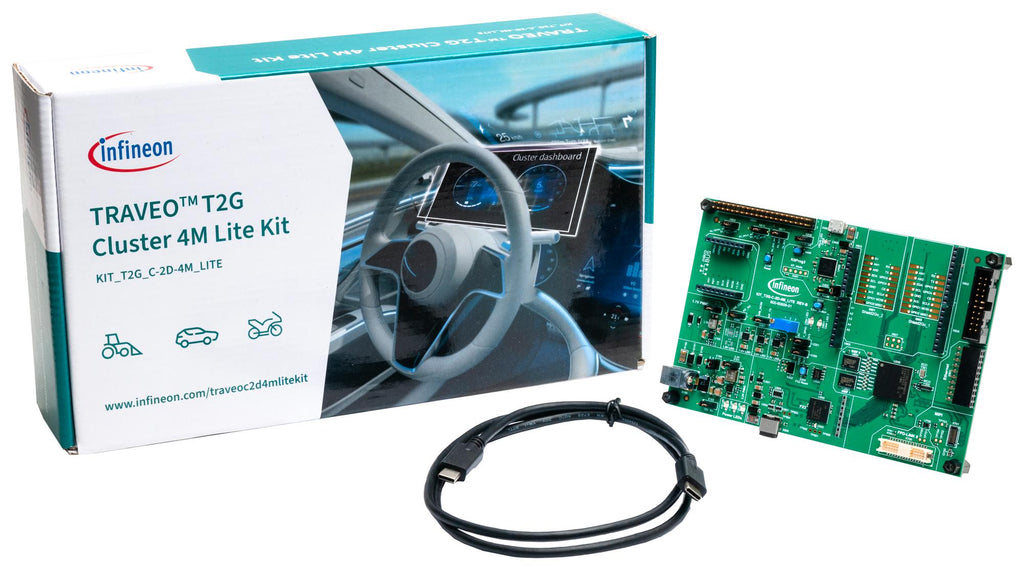

KIT-T2G-C-2D-4M-LITE REV-01 board, USB Type-C to Type-C cable.
