| ₹ 11302.74 includes GST and import duties. | |
| B2B customers can avail ₹ 1723.67 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

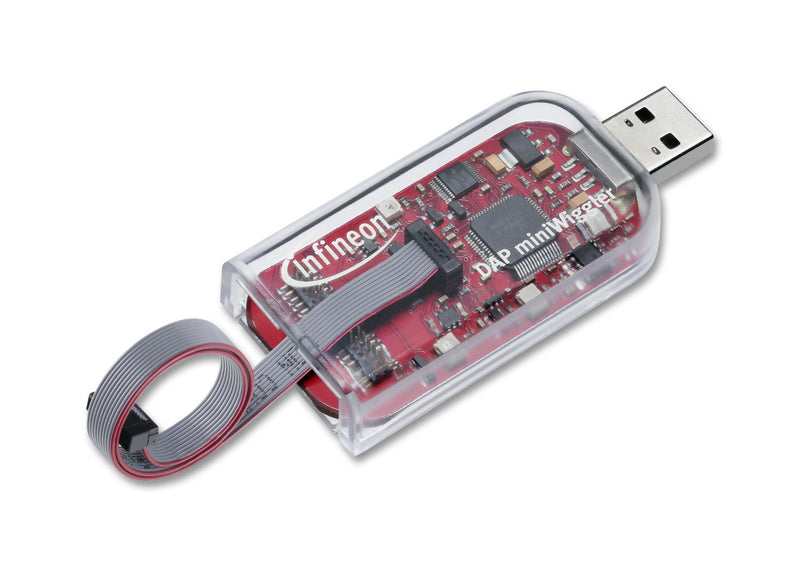

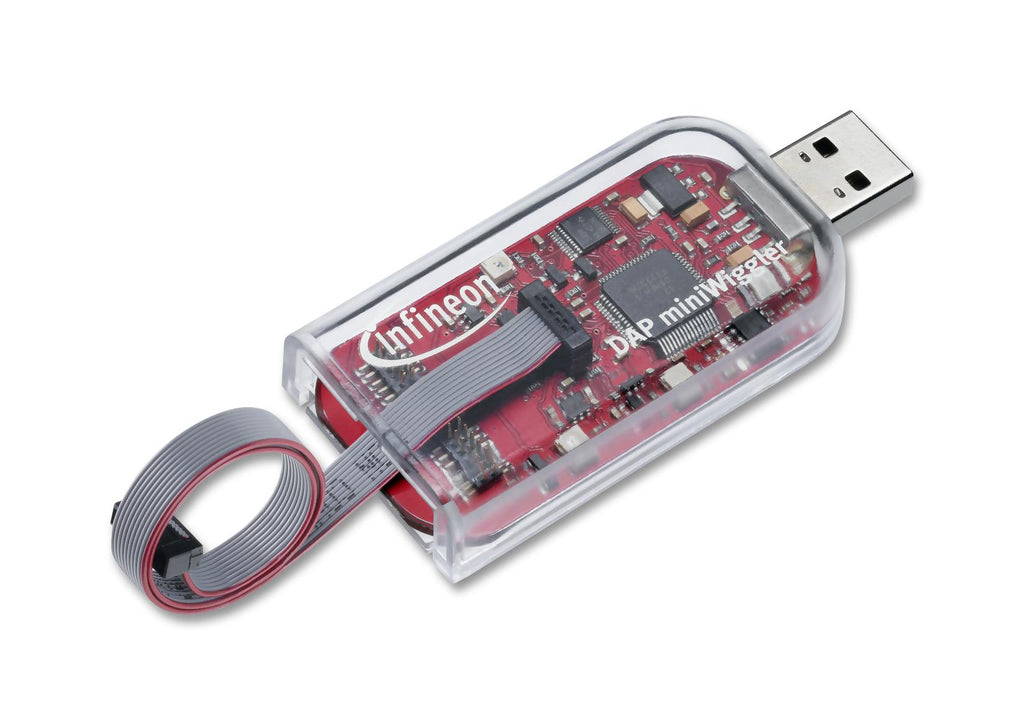

The DAP miniWiggler V3 is the successor of the DAP miniWiggler. It converts from the PC/USB to the debug interface (10-pin DAP/SPD/SWD, 20-pin Automotive JTAG) of an Infineon Microcontroller device. The software interface for tools is the DAS (Device Access Server) DLL.
- Clock rate up to 30 MHz (programmable)
- All signals are 5.5V, scaling down to 1.65V
- USB 2.0 (high-speed)
- Certified drivers for Microsoft Windows XP, VISTA, 7, and 8
- USB, JTAG and DAP/SPD hotplug and unplug
- 3 on-board status LED
- Support for Automotive 20-pin JTAG on 10-pin DAP connectors
- Connector for frontend extensions (e.g. for galvanic isolation) added
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | INFINEON |
| Part Number | KITMINIWIGGLER3USBTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11076.69 |
| 3-5 | ₹ 10963.66 |
| 5-10 | ₹ 10737.6 |
| 10+ | ₹ 10511.55 |
Bulk discount will be automatically applied during checkout based on quantity.
