INFINEON KITLGPWRBOM013TOBO1 Power Board Module, LVD Scalable Power Demonstration Boards, Low Voltage Drive SP005592451

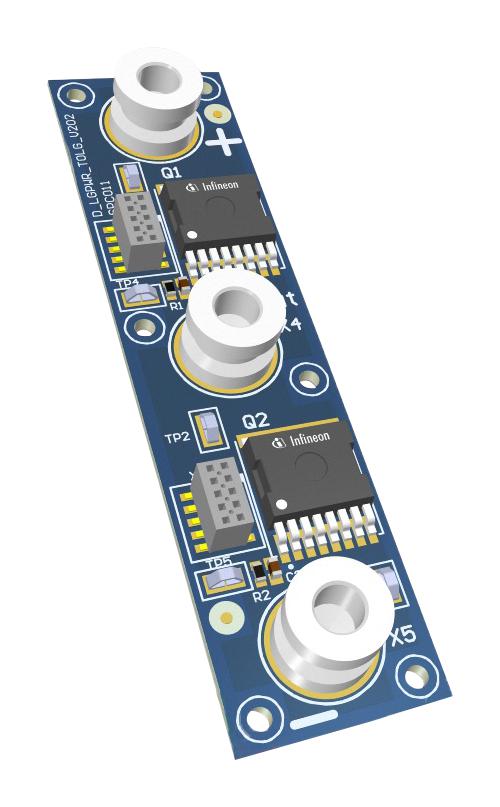

KITLGPWRBOM013TOBO1 is a kit power board for low voltage drives scalable power demo board using IPTG014N10NM5. This kit power board module with 100V OptiMOS� MOSFET in TOLG package represents the power building block of the LVD scalable power demo board platform. The power board represents the basic building block. It serves as a single half-bridge with power and gate drive interconnections, enabling easy buildup of any half-bridge based power topology. This power board is equipped with the OptiMOS� power MOSFET IPTG014N10NM5 which comes in the improved TO-leaded package with gullwing leads. With a compatible footprint to TO-leadless, TOLG allows excellent electrical performance compared to D2PAK 7-pin with ~60 percent board space reduction. Typical applications include prototyping forklifts and LEVs (low speed cars, e-scooters, 3-wheelers, golf cars), BPA BLDC motor drives and cordless power tools.

• 100V TOLG
• IMS PCB for increased cooling
• SMD power terminals with M5 thread
• Onboard test point terminals
• High performance capability
• High system reliability
• High efficiency and lower EMI
