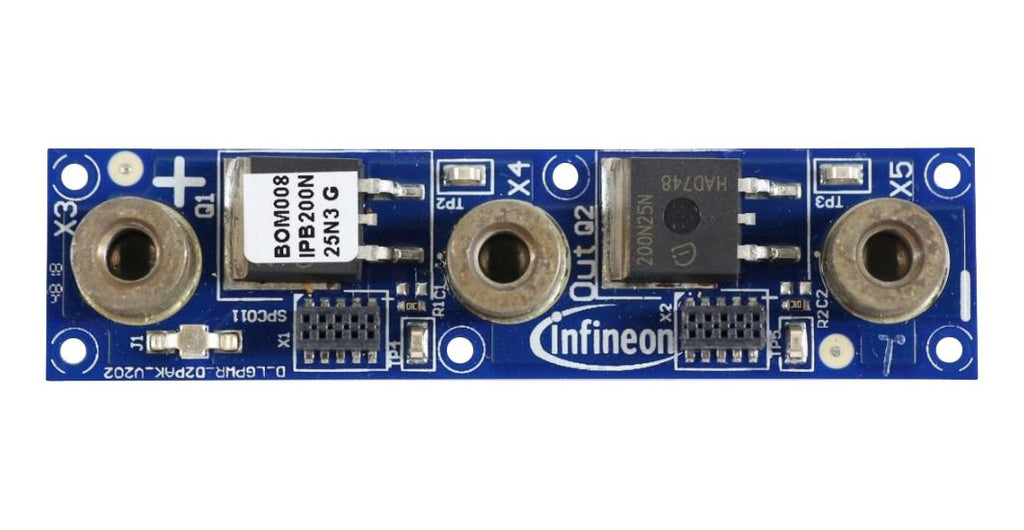

KITLGPWRBOM008TOBO1 is a power board kit for low voltage drives scalable power demoboard. This power board kit module utilizing the OptiMOS� 250V MOSFET in D2PAK represents the power building block of the LVD scalable power demo board platform. The power board represents the basic building block. It serves as a single half-bridge with power and gate drive interconnections, enabling easy build-up of any half-bridge based power topology.
- Modular half-bridge power PCB with OptiMOS power MOSFETs for individual/parallel MOSFET applications
- IMS PCB for increased cooling
- SMD power terminals with M5 thread
- On-board test point terminals
- Dimension is 75mm x 19mm
Other details
| Brand |
INFINEON |
| Part Number |
KITLGPWRBOM008TOBO1 |
| Quantity |
Each |
| User Manual EN |
 |
