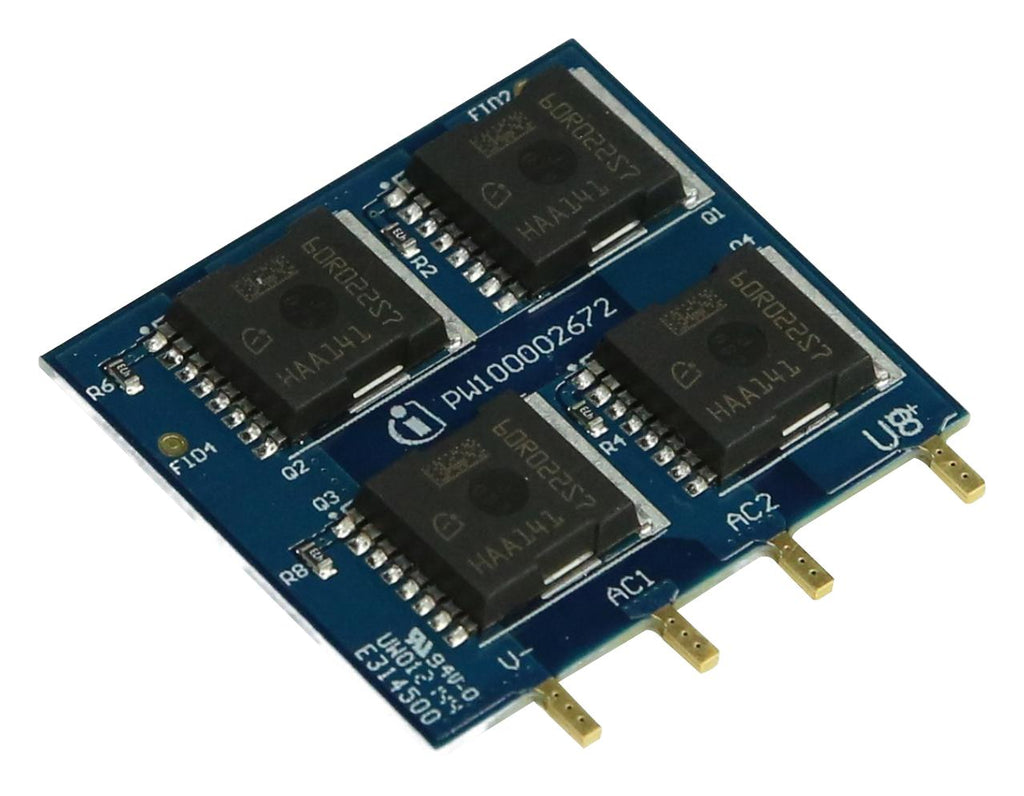

KITACTBRDS74PINTOBO1 is a line rectifier module featuring 600 V CoolMOS� S7. It aims to replace the standard diode bridge rectifier with an active full-bridge for line rectification in standard CCM boost PFCs. The board is equipped with control and driving circuitries integrated in one chip. The board has only 4-pins, thus being pin to pin compatible with the standard diode bridge.
- Active-bridge daughter card for line rectification
- Integrated control and driving scheme
- Based on 22mR CoolMOS� S7
- Pin to pin compatible with standard diode bridge
- Efficiency increases compared to standard bridge solution
- Extremely compact design
- Lower temperature rises compared to standard bridge solution
- No need for heatsink connection
- No need for bias supply
Other details
| Brand |
INFINEON |
| Part Number |
KITACTBRDS74PINTOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
