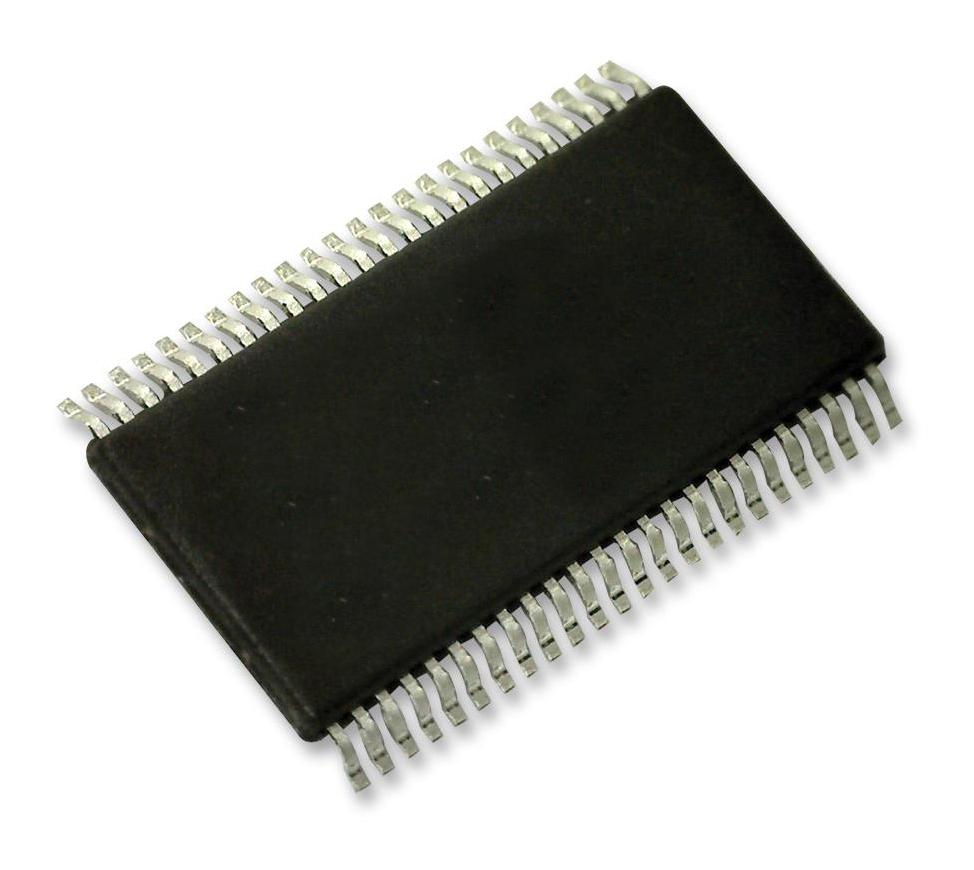

Infineon ISO1I813TXUMA1 ISO1I813TXUMA1 Power Load Switch Electrically Isolated 8 Bit High Side Active Low Outputs 5.5V TSSOP-48

The ISO1I813T is an electrically isolated 8 bit Data Input Interface used to detect the signal states of eight independent input lines according to IEC61131-2 Type 1/2/3 (e.g. two-wire proximity switches) with a common ground (GNDFI). For operating sensors of type 1/2/3 in accordance with IEC61131-2, it is necessary for the device to be wired with resistors RV and REXT (it is recommended to use resistors with an accuracy of 2%, in any case < 5% - is mandatory, temperature-coefficients < 200ppm are allowed). An 8 bit parallel µC compatible interface allows connecting the IC directly to a µC system. The input interface is designed to operate with 3.3/5V CMOS compatible levels. The data transfer from input to output side is realized by the integrated Coreless Transformer Technology.

• Temperature range up to 135°C TJunction
• Low temperature drift
• Superior EMI robustness
• Robust over operational lifetime
• Secure data transfer under very harsh conditions
• Complete system integration
• 8-channel input according to IEC61131-2 (Type 1/2/3)
• Integrated galvanic isolation 500VAC (EN60664-1, UL1577)
• Adjustable deglitching filters
• Up to 500kHz sampling frequency

• Wire-break detection
• VBB under-voltage detection

Applications

Motor Drive & Control, Industrial, Power Management
