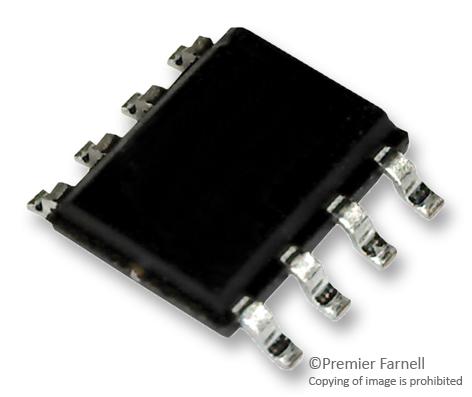

Infineon IRS2302SPBF IGBT/MOSFET Gate Driver High Side 5V-20V Supply 350mA Out 200ns Delay SOIC-8

The IRS2302SPBF is a high voltage high speed power MOSFET and IGBT Half-bridge Driver with independent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.

• Floating channel designed for bootstrap operation
• Tolerant to negative transient voltage (dV/dt immune)
• Under-voltage lockout for both channels
• 3.3, 5 and 15V Input logic compatible
• Cross-conduction prevention logic
• Matched propagation delay for both channels
• High-side output in phase with input
• Internal 450ns dead-time
• Lower di/dt gate driver for better noise immunity
• Shut down input turns-OFF both channels

Applications

Motor Drive & Control, Power Management
