Description

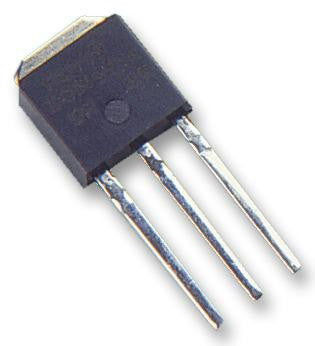

The IRFU9024NPBF is a -55V single P-channel HEXFET® Power MOSFET, fifth generation HEXFET utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapour phase, infrared or wave soldering techniques.
- Ultra low on-resistance
- Advanced process technology
- Fully avalanche rated
Applications
Power Management
Product details
| Power Dissipation Pd | 38W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | -11A |
| Transistor Polarity | P Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | -4V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | -55V |
| Rds(on) Test Voltage Vgs | -10V |
| Transistor Case Style | TO-251AA |
| On Resistance Rds(on) | 0.175ohm |
| MSL | - |
Other details
| Brand | INFINEON |
| Part Number | IRFU9024NPBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
|
|
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 120.79 |
| 3-5 | ₹ 119.56 |
| 5-10 | ₹ 117.1 |
| 10+ | ₹ 114.63 |
Bulk discount will be automatically applied during checkout based on quantity.
