| ₹ 1316.82 includes GST and import duties. | |
| B2B customers can avail ₹ 200.82 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

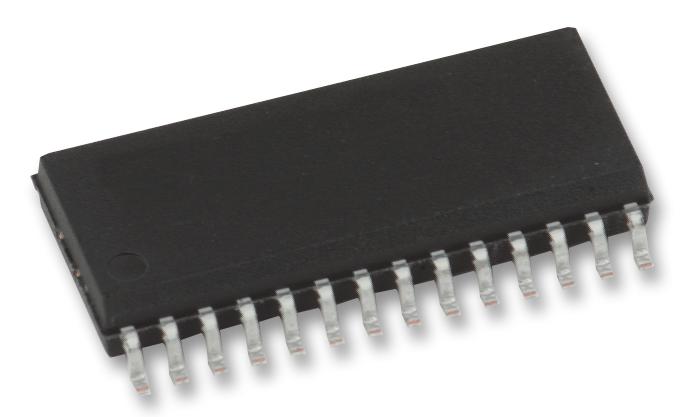

This is a MOSFET Driver, 3 Phase Bridge, 10 V to 20 V Supply, 420 mA Out, 425 ns Delay, WSOIC-28 product from INFINEON with the model number IR2130STRPBF
Product details
| Driver Configuration | 3 Phase Bridge |
| Peak Output Current | 420mA |
| Supply Voltage Min | 10V |
| Supply Voltage Max | 20V |
| Driver Case Style | WSOIC |
| No. of Pins | 28Pins |
| Input Delay | 675ns |
| Output Delay | 425ns |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
| RoHS Phthalates Compliant | Yes |
Other details
| Brand | INFINEON |
| Part Number | IR2130STRPBF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1290.48 |
| 3-5 | ₹ 1277.32 |
| 5-10 | ₹ 1250.98 |
| 10+ | ₹ 1224.64 |
Bulk discount will be automatically applied during checkout based on quantity.
