| ₹ 595.91 includes GST and import duties. | |
| B2B customers can avail ₹ 90.88 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The IR2112SPBF is a high voltage high speed power MOSFET and IGBT Driver with independent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technology enables ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive a N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
- Floating channel designed for bootstrap operation
- Tolerant to negative transient voltage DV/DT Immune
- Under-voltage lockout for both channels
- CMOS Schmitt-triggered inputs with pull-down
- Cycle-by-cycle edge-triggered shutdown logic
- Matched propagation delay for both channels
- Outputs in phase with inputs
Applications
Industrial, Consumer Electronics, Alternative Energy, Power Management
Product details
| Output Delay | 105ns |
| Operating Temperature Min | -40°C |
| Peak Output Current | 420mA |
| Input Delay | 125ns |
| Driver Case Style | SOIC |
| Operating Temperature Max | 125°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 10V |
| Packaging | Each |
| Supply Voltage Max | 20V |
| Driver Configuration | High Side and Low Side |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | IR2112SPBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

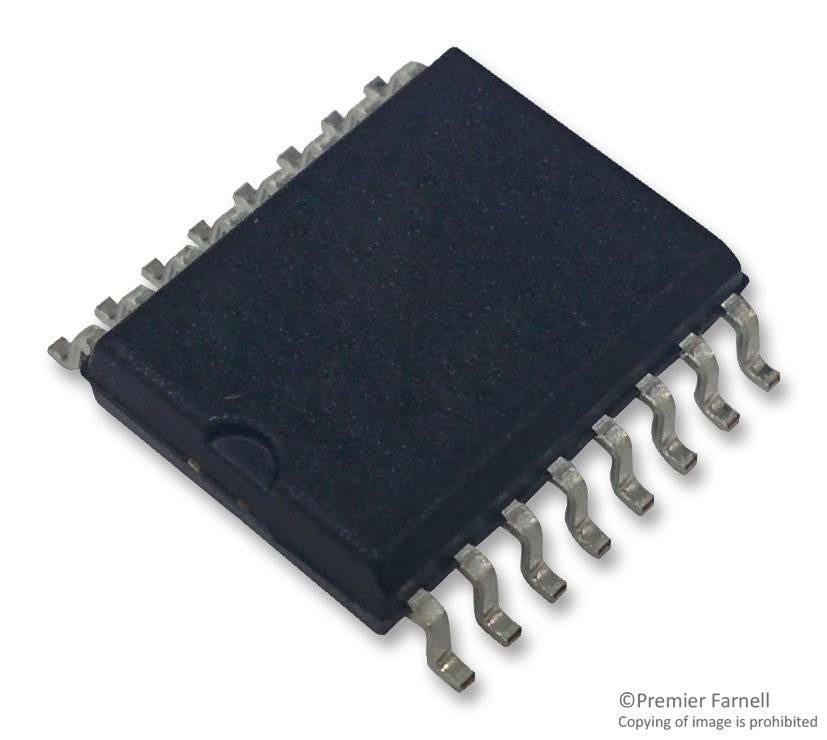

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 583.99 |
| 3-5 | ₹ 578.03 |
| 5-10 | ₹ 566.11 |
| 10+ | ₹ 554.2 |
Bulk discount will be automatically applied during checkout based on quantity.
