Description
The IR2102SPBF is a high voltage high speed power MOSFET and IGBT Driver with independent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
- Floating channel designed for bootstrap operation
- Tolerant to negative transient voltage (dV/dt immune)
- Under-voltage lockout
- 3.3, 5 and 15V Logic input compatible
- Matched propagation delay for both channels
- Outputs out of phase with inputs
Applications
Computers & Computer Peripherals, Consumer Electronics, Communications & Networking, HVAC
Product details
| Output Delay | 150ns |
| Operating Temperature Min | -40�C |
| Peak Output Current | 360mA |
| Input Delay | 160ns |

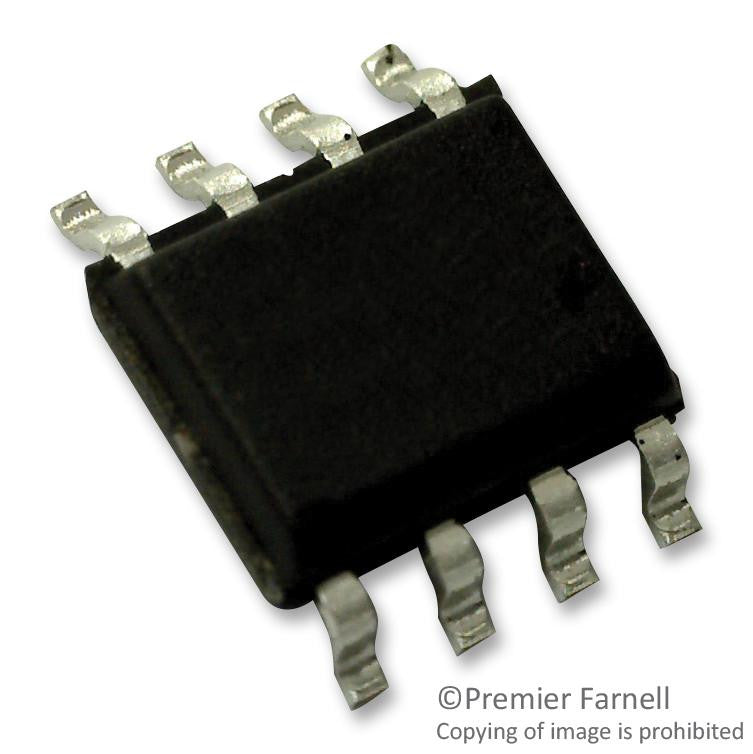

| Driver Case Style | SOIC |
| Operating Temperature Max | 125�C |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 10V |
| Packaging | Each |
| Supply Voltage Max | 20V |
| Driver Configuration | High Side and Low Side |
| MSL | MSL 2 - 1 year |
Other details
| Brand | INFINEON |
| Part Number | IR2102SPBF |
| Quantity | Each |
