Description
Product Overview

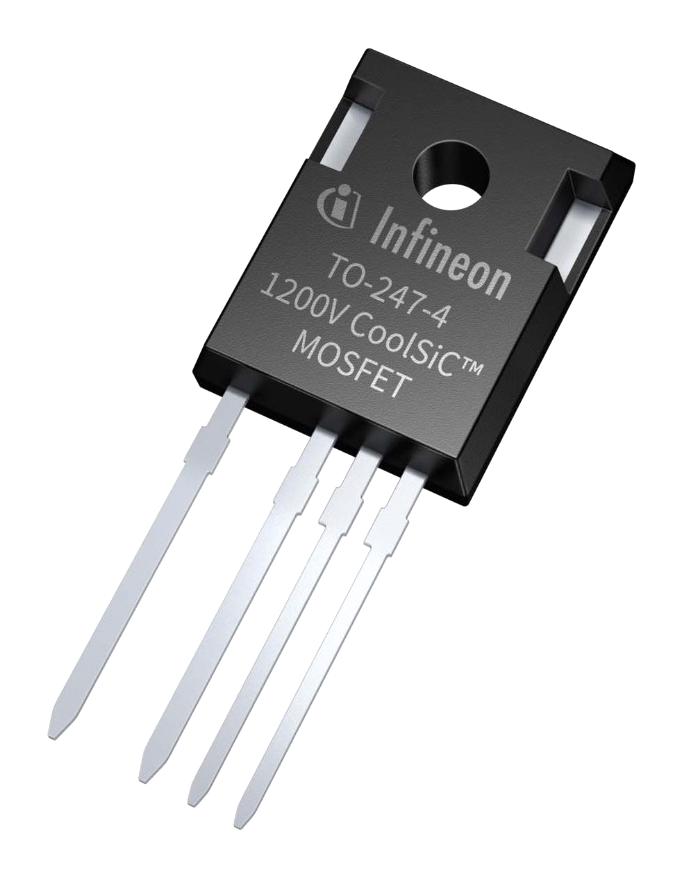

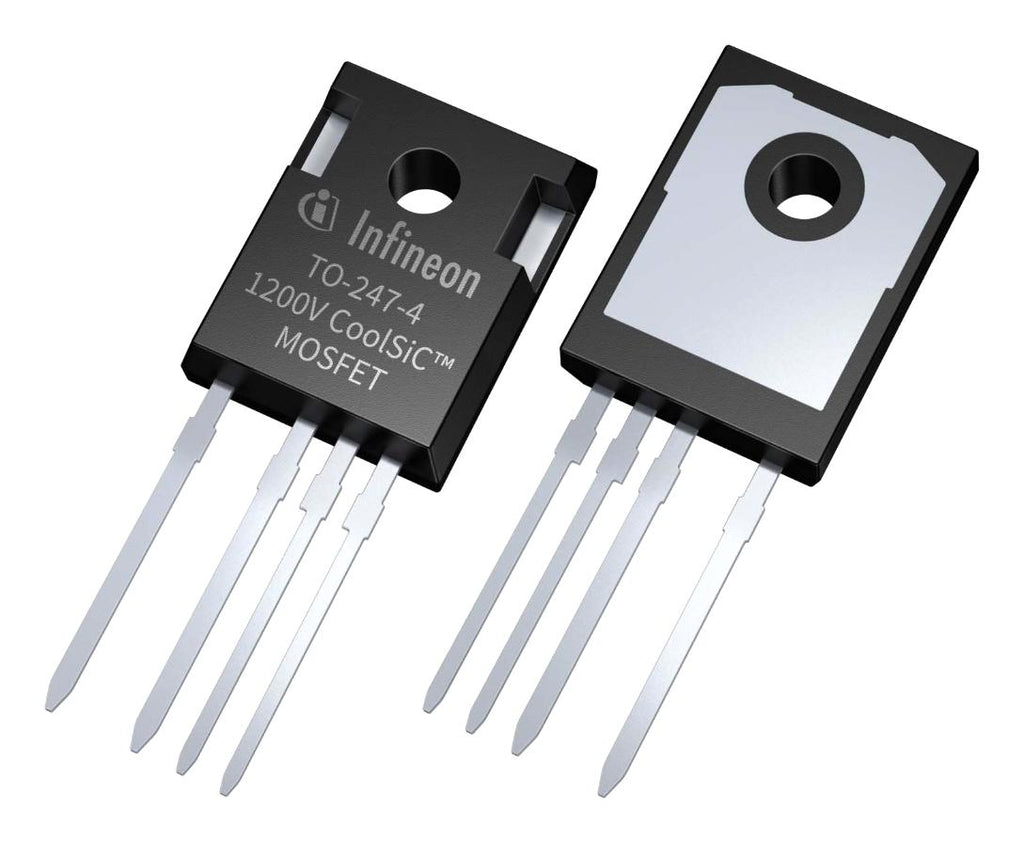

IMZA120R030M1HXKSA1 is a CoolSiC� 1200V SiC Trench MOSFET. Suitable for General purpose drives (GPD), EV-charging, online UPS/industrial UPS, string inverter and solar power optimizer applications.
- Silicon carbide MOSFET with .XT interconnection technology
- 1200V VDSS at Tvj = 25°C and 70A IDDC at Tc = 25°C
- RDS(on) = 30mohm at VGS = 18V, Tvj = 25°C
- Very low switching losses
- Short circuit withstand time 3µs
- Benchmark gate threshold voltage, VGS(th) = 4.2V
- Robust against parasitic turn on, 0V turn-off gate voltage can be applied
- Robust body diode for hard commutation
- XT interconnection technology for best-in-class thermal performance
- 4 pin TO-247 package, virtual junction temperature range from -55 to 175°C
Product details
Other details
| Brand | INFINEON |
| Part Number | IMZA120R030M1HXKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
