Description
Product Overview

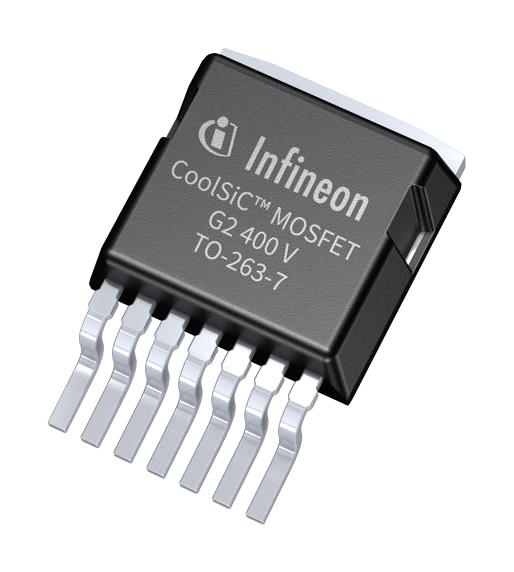

IMBG40R045M2HXTMA1 is a CoolSiC� 400V CoolSiC� G2 MOSFET in a 7 pin TO263 package. Typical applications include SMPS, solar PV inverters, energy storage, UPS and battery formation, class?D audio and motor drives.
- 400V drain source voltage, 44.9mohm RDS(on), 43A drain current
- Ideal for high frequency switching and synchronous rectification
- Commutation robust fast body diode with low Qfr
- Low RDS(on) dependency on temperature
- Benchmark gate threshold voltage, VGS(th) = 4.5V
- Recommended gate driving voltage 0V to 18V
- XT interconnection technology for best?in?class thermal performance
- 100% avalanche tested
- Operating junction temperature range from ?55 to 175°C
Product details
Other details
| Brand | INFINEON |
| Part Number | IMBG40R045M2HXTMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
