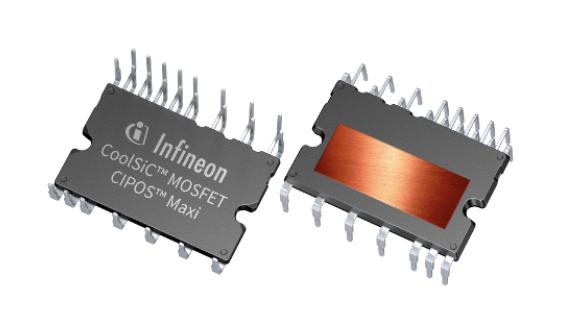

IM828XCCXKMA1 is a CIPOS� Maxi 1200V, 55 mohm three-phase CoolSiC� MOSFET based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for industrial applications including industrial drives, HVAC, active filters, motor controls and etc.
- Based on 1200V CoolSiC� MOSFETs
- Motor power rating up to 4.8KW at 10KHz
- Rugged 1200V SOI gate driver technology with stability against transient
- Over current shutdown
- Under-voltage lockout at all channels
- All of 6 switches turn off during protection
- Cross-conduction prevention
- Built-in NTC thermistor for temperature monitor
- Programmable fault clear timing and enable input
- UL-certified
Other details
| Brand |
INFINEON |
| Part Number |
IM828XCCXKMA1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
