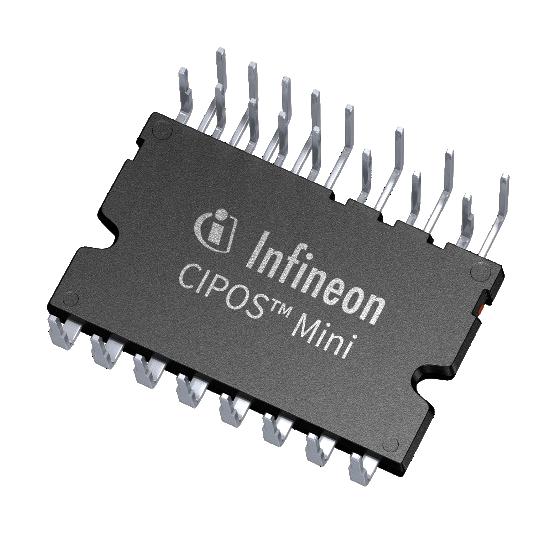

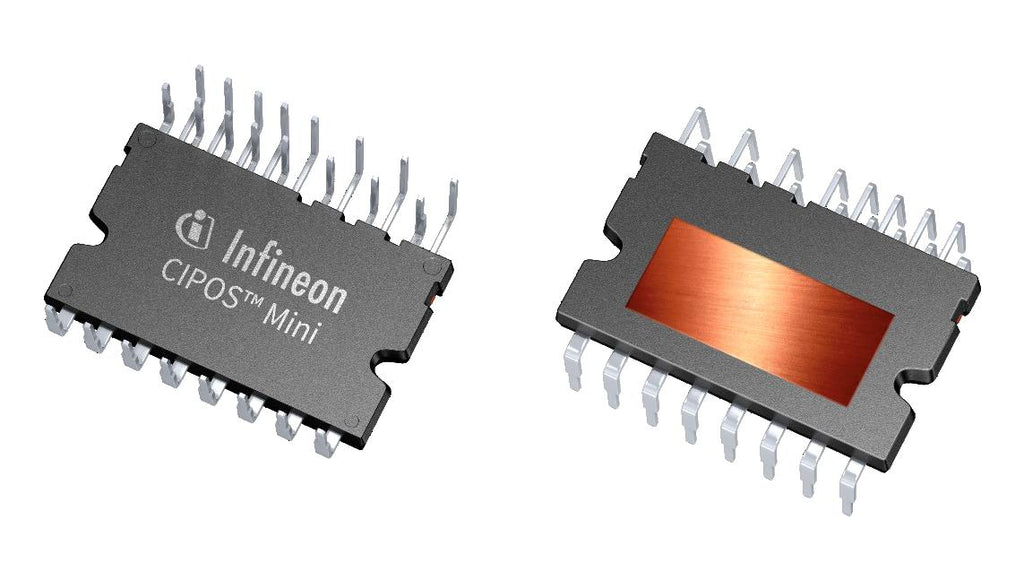

CIPOS� Mini 600V, 20A three-phase TRENCHSTOP� IGBT based intelligent power module with CoolMOS� Power MOSFET and a rapid switching diode for PFC stage to support high PFC switching frequency up to 150kHz. It integrates single boost Power Factor Correction (PFC) stage and inverter stage in one DIP 36x21D package with DCB substrate, to provide excellent thermal conduction and electrical isolation for home appliances and industrial drives.
- Single boost PFC and three-phase inverter in one package
- TRENCHSTOP� IGBT for inverter
- CoolMOS� Power MOSFEET and rapid diode for PFC
- 20 A of current rating for inverter and PFC
- PFC switching frequency up to 150KHz
- Built-in temperature monitoring
- Motor power rating up to 2400W at 10KHz
- UL certified
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
IM564X6DXKMA1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
