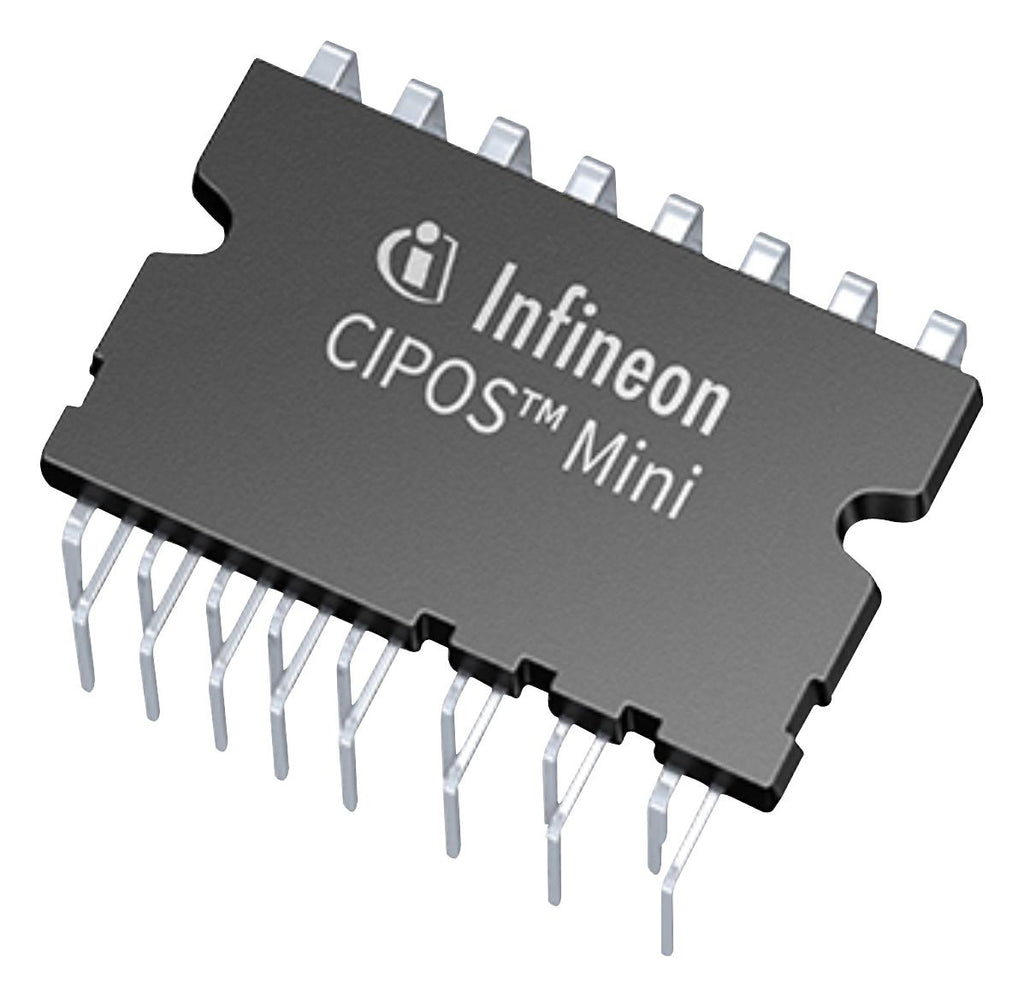

IM523L6AXKMA1 is a CIPOS� Mini 600V, 15A three-phase TRENCHSTOP� RCD2 IGBT based intelligent power module with open emitter in DIP 36x21. It is designed to control three-phase motors in variable speed drive in low and medium power applications for home appliance, HVAC (heating, ventilation, and air conditioning), as well as industrial fan and drives. Our leading-edge RC-Drives IGBTs, TRENCHSTOP� RCD2 are combined with a fully-featured SOI gate driver to deliver excellent performance both in cost and power loss.
- Various current ratings available from 6A to 17A
- Best optimized performance for consumer and low power drive applications
- New gate driver IC in SOI technology
- Improved humidity ruggedness
- Cost-effective ideal solution for low and medium power platforms
- Enhanced system reliability and functional improvement with latest gate driver IC and RC IGBT
- High integrations (bootstrap circuit, thermistor) for easy design and saving system space
- Easy & fast design conversion from existing Mini (P2P) without PCB re-design
Other details
| Brand |
INFINEON |
| Part Number |
IM523L6AXKMA1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
