| ₹ 307.97 includes GST and import duties. | |
| B2B customers can avail ₹ 46.97 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The IKP15N60T is a Low Loss IGBT in TrenchStop® and field-stop technology with soft, fast recovery anti-parallel emitter controlled HE diode. The TrenchStop® IGBT technology leads to significant improvement of static as well as dynamic performance of the device, due to combination of TrenchStop®-cell and field-stop concept. The combination of IGBT with soft recovery emitter controlled diode further minimizes the turn-ON losses. The highest efficiency is reached due to the best compromise between switching and conduction losses.
- Lowest Vce (sat) drop for lower conduction losses
- Low switching losses
- Easy parallel switching capability due to positive temperature coefficient in Vce (sat)
- Very soft, fast recovery anti-parallel emitter controlled HE diode
- High ruggedness, temperature stable behaviour
- Low EMI emissions
- Low gate charge
- Very tight parameter distribution
- Highest efficiency - Low conduction and switching losses
- High device reliability
- 5µs Short-circuit withstand time
- Green product
- Halogen-free
Power Management, Alternative Energy, Consumer Electronics, HVAC, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | IKP15N60TXKSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Simulation Model EN | |

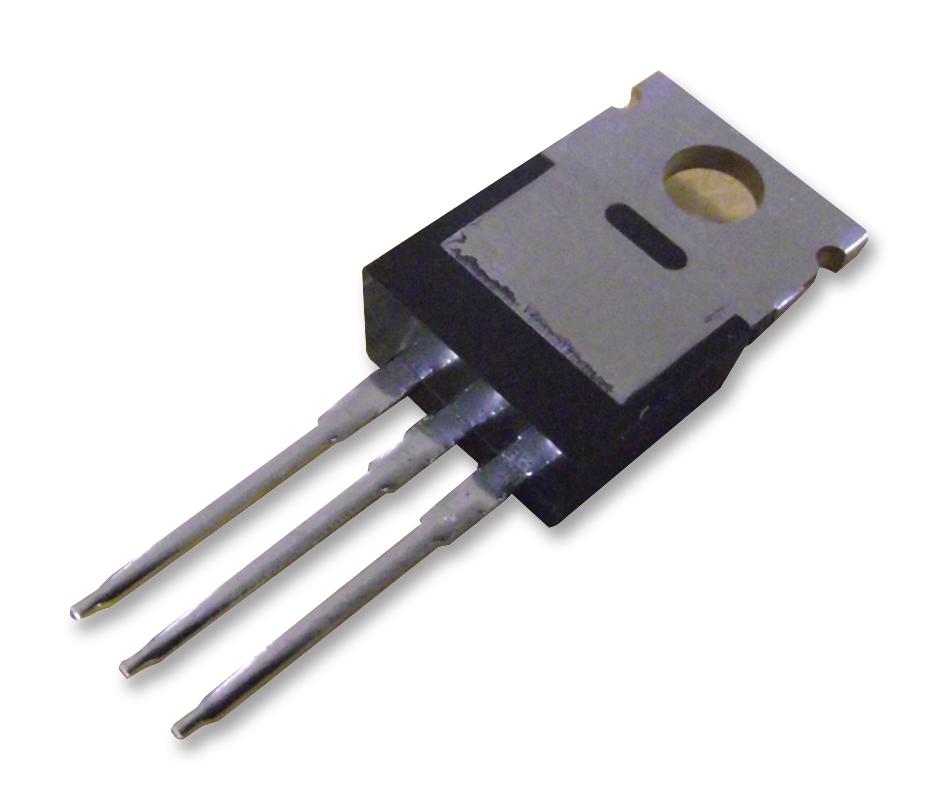

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 301.81 |
| 3-5 | ₹ 298.73 |
| 5-10 | ₹ 292.57 |
| 10+ | ₹ 286.41 |
Bulk discount will be automatically applied during checkout based on quantity.
