Description
Product Overview

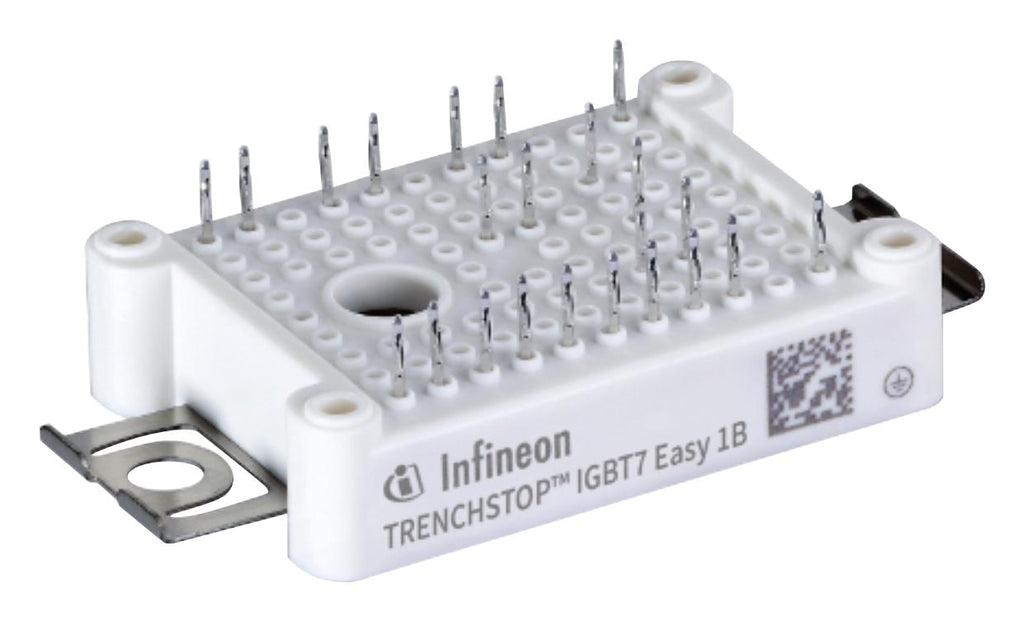

FF100R12W1T7EB11BPSA1 is an EasyDUAL� 1B, 1200V, 100A common emitter IGBT module with TRENCHSTOP� IGBT T7, EC7, Pressfit Pin, and NTC.
- Electrical features: VCES = 1200V
- IC nom = 100A / ICRM = 200A
- Overload operation up to 175°C and low VCE,sat
- Mechanical features: high power density, compact design
- Al2O3 substrate with low thermal resistance
- PressFIT contact technology
- 2.5KV AC 1 minute insulation and integrated NTC temperature sensor
- Easy family with 12mm height
- Easy to design, increased power density, best cost-performance and reduced system costs
- 1.5V typ collector-emitter saturation voltage at IC = 100A, VGE = 15V, Tvj = 25°C
Product details
Other details
| Brand | INFINEON |
| Part Number | FF100R12W1T7EB11BPSA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
