Description
Product Overview

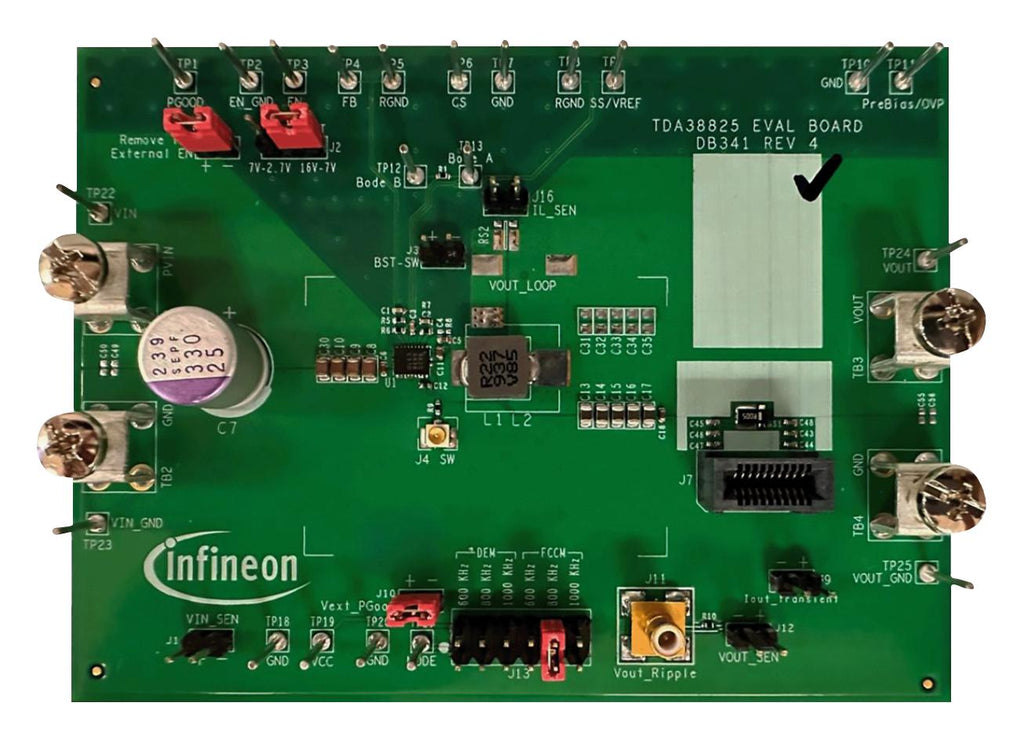

EVALTDA388251VOUTTOBO1 is an evaluation board to evaluate TDA38825 synchronous buck regulator, providing a compact, high-performance and flexible solution in a small 3mm x 4mm QFN package. Key features offered by the TDA38825 include internal soft-start, precision 0.6V reference voltage, power good, thermal protection, programmable switching frequency in the range of 600KHz to 1MHz, programmable soft-start, enable input, input undervoltage lockout (UVLO) for proper start-up, latched-off output overvoltage protection (OVP), overcurrent protection (OCP) limit, and pre-bias start-up.
- VIN = +12V, VOUT = +1V at 0 to 20A
- Fs = 600KHz/800KHz/1000KHz
- L = 220nH
- CIN= 10x22µF (25V, ceramic 0805) + 1x2.2µF (25V, ceramic 0805) + 1 x 330µF (25V, electrolytic, opt)
- COUT = 10 x 47µF (6.3V, ceramic 0805) + 1 x 2.2µF (6.3V, ceramic 0805)
- PCB is a six-layer board using FR4 material
Product details
Other details
| Brand | INFINEON |
| Part Number | EVALTDA388251VOUTTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
