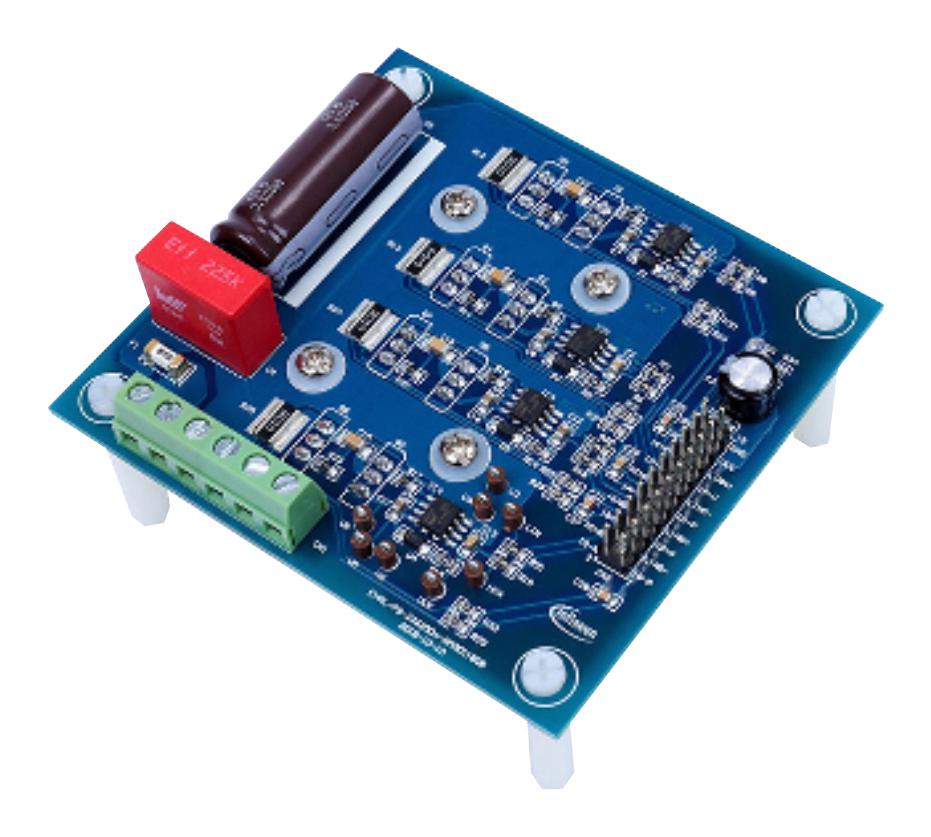

Stepper motor evaluation board for 200V half-bridge/high side and low side level shift gate driver IRS2005S/IRS2007S/IRS2008S.
- Four-phase inverter with individual leg shunt, specifically for stepper motor driving
- Double-sized PCB supplies with a low-cost solution
- DC voltage input with fused protection in case of short circuit
- The board can run a stepper motor by connecting to an external control board
- Externally imported auxiliary power supply via LED indication
- Natural ventilation with installed heatsink
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
EVALPSIRS200XTOBO1 |
| Quantity |
Each |
| Operating Instructions EN |
 |
