Description
Product Overview

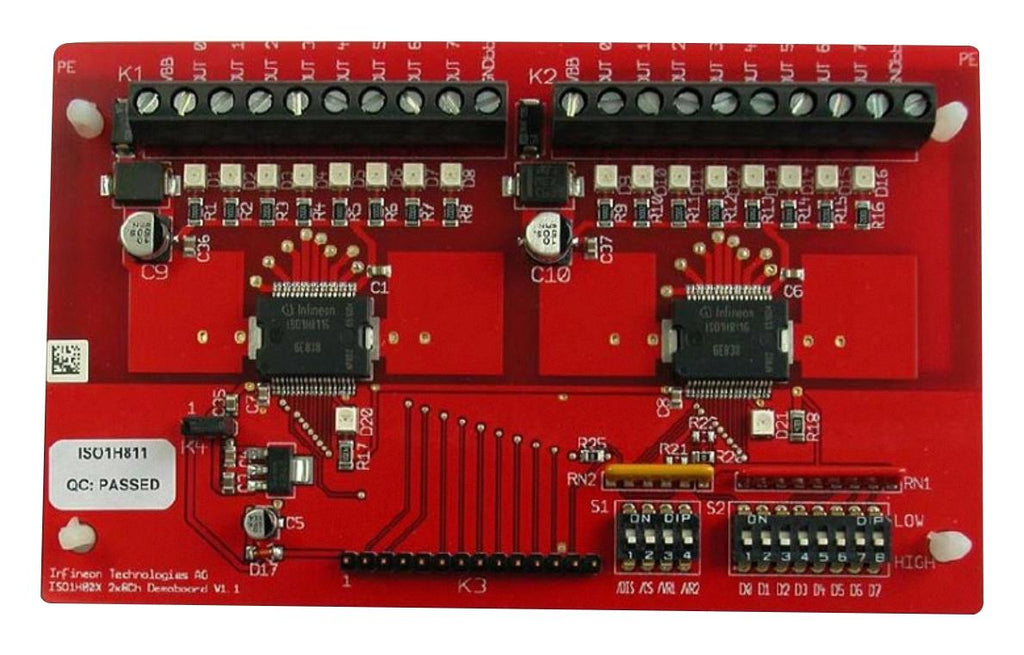

EVALISO1H811GTOBO1 is an evaluation board to evaluate ISO1H811G ISOFACE� galvanic isolated 8 channel high-side switch. The ISO1H81xG family offers parallel and serial 3.3V/5V ?C-interfaces, facilitating straight forward connection with virtually any ?C, ?P, ASIC or FPGA. The ISO1H81xG products enable OEM-product designs which meet the stringent EMI requirements of the IEC 61131-2 norm (zone C) applicable for Programmable Logical Controllers (PLC). Robust galvanic isolation (UL508 and EN 611312 certified) to protect the 3.3V/5V control domain of an industrial control system from the harsh 24V (typ) process side �8channel high side power switching capabilities of up to 1.2A per channel. Typical applications include programmable logic controllers, distributed control systems, general control equipment, robotics, solid-state relay.
- Active current limitation and over temperature protection
- Common diagnostic feedback for overtemperature and for Vbb undervoltage
- Parallel interface
- SMD mounting
- Supply voltage range from 11V to 35V
- 0.6A max output current
- Output voltage range from 3V to 5.5V
Product details
Other details
| Brand | INFINEON |
| Part Number | EVALISO1H811GTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
