Description
Product Overview

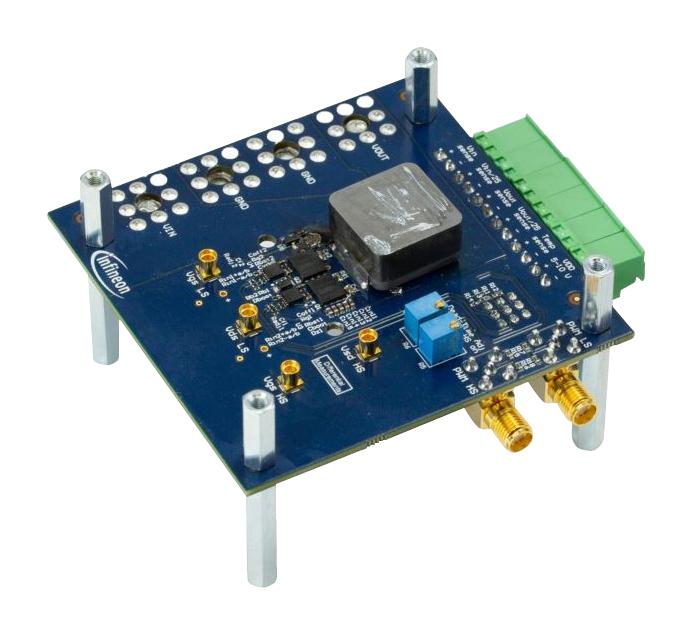

EVAL7116G100VSSO8TOBO1 is a board for general-purpose evaluation of OptiMOS� 6 100V in SSO8 package together with TDI EiceDriver� 1EDN7116G. This board includes an optimized layout for a hard-switching half-bridge, as well as waveform measurement points and other useful features to enable easy lab bench characterization of the switch and the driver. It is pre-configured to run as a buck or boost converter, but you can easily reconfigure the board for a double pulse test or any halfbridge topology with external connections. Typical applications include motor control, photovoltaic, server power supplies and telecommunication infrastructure.
- Optimized layout
- Different PWM inputs options
- On-board deadtime generation
- On-board temperature sensing
- Different heatsink assembly options
- Optimized measurement points
- Improved system efficiency
- Measurement options flexibility
- Easy lab bench characterization
- Easy test setup configuration
Product details
Other details
| Brand | INFINEON |
| Part Number | EVAL7116G100VSSO8TOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
