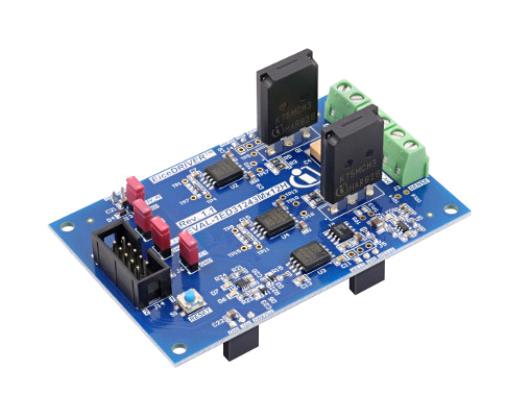

EVAL-1ED3124Mx12H is intended for the product feature evaluation of the Infineon EiceDRIVER� Compact 1ED3124MU12H or 1ED3124MC12H in an application circuit. EVAL-1ED3124MX12H is in half-bridge configuration with two gate driver ICs (1ED3124MU12H) to drive power switches such as IGBTs and SiC MOSFETs. This board comes with TRENCHSTOP� IGBT IKQ75N120CH3.
- Gate driver IC for isolated over-current feedback signal from high voltage to logic control side
- Fast operational amplifier used as comparator for over-current detection
- Board has a size of 85 x 55 x 15 mm³ without any power switch assembled
Other details
| Brand |
INFINEON |
| Part Number |
EVAL1ED3124MX12HTOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
