Description
Product Overview

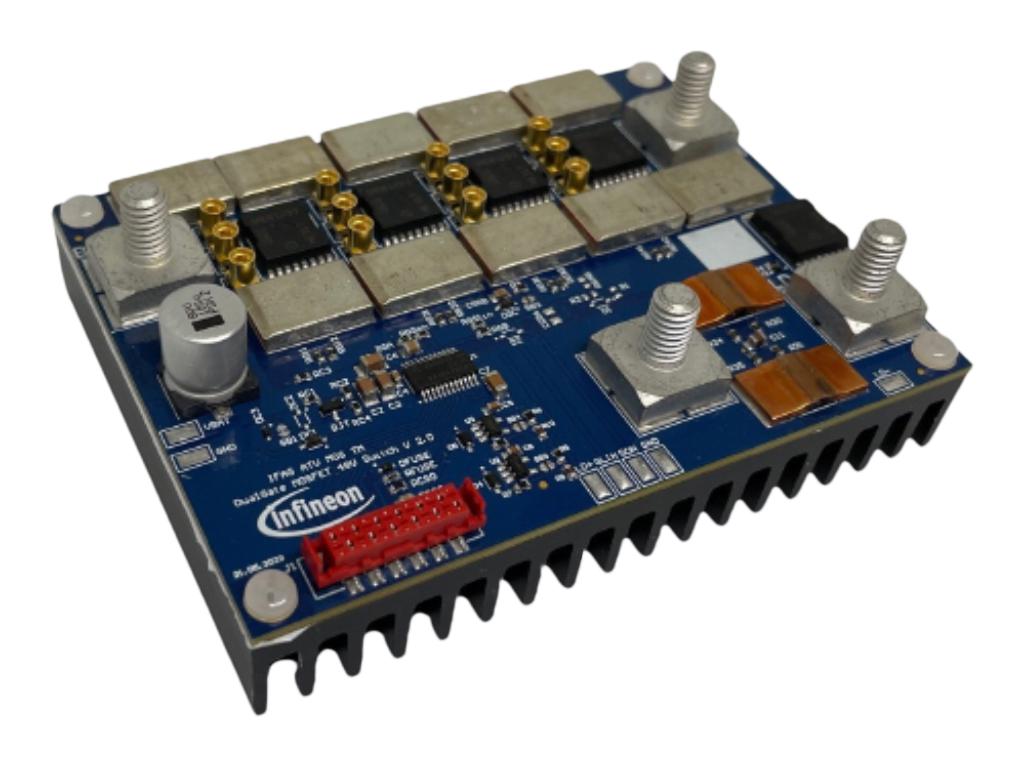

DG48VSWITCHKITTOBO1 is a 48V disconnect switch demo board with 80V OptiMOS� 5 Dual Gate MOSFETs. A 48V switch evaluation board supporting fast pulsed capacitor charging with Dual Gate MOSFETs, to minimize system costs (no separate pre-charging path needed). The board is Active clamping capable to dissipate inductive energy from cable harness. The Dual Gate MOSFET operates in linear mode instead of avalanche to increase short circuit robustness. Suitable for power distribution, battery management, electrically heated catalyst applications.
- For 48V disconnect switch application
- Acceleration of capacitor charging
- Reduction of system cost
- Fast pulsed capacitor charging
- No separate pre-charging path needed
- Active clamping capable
- Linear mode operation
- Increased short circuit robustness
Product details
Other details
| Brand | INFINEON |
| Part Number | DG48VSWITCHKITTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44751.81 |
| 3-5 | ₹ 44295.16 |
| 5-10 | ₹ 43381.85 |
| 10+ | ₹ 42468.55 |
Bulk discount will be automatically applied during checkout based on quantity.
