CYT2B73CADQ0AZSGS is an Arm® Cortex®-M4F single TRAVEOâ�¢ T2G 32bit MCU targeted at automotive systems such as body control units. It has an Arm® Cortex®-M4 CPU for primary processing, and an Arm® Cortex®-M0+ CPU for peripheral and security processing. It contains embedded peripherals supporting controller area network with flexible data rate (CAN FD), and local interconnect network (LIN). This device is manufactured on an advanced 40nm process. It incorporates a low-power flash memory, multiple high-performance analogue and digital peripherals, and enables the creation of a secure computing platform.
- 1088KB code flash, 96KB work flash, 128KB RAM, 27 ADC channel
- 5 SCB channels, 6 LIN channels, 5 CANFD channels
- Single-cycle multiply, single-precision floating point unit, memory protection unit
- Inter-processor communication in hardware
- Read-While-Write allows updating the code-flash/work-flash while executing from it
- Flash programming through SWD/JTAG interface
- Secure boot and authentication, using digital signature verification
- True random number generator and pseudo random number generator
- Supports all the requirements of Bosch CAN FD specification V1.0 for non-ISO CAN FD

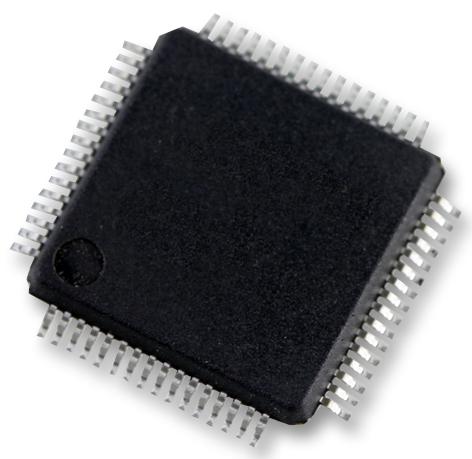

- 64 lead LQFP package, ambient temperature range from -40 to 105°C
Product details
| Product Range:
Traveo T2G Family CYT2B7 Series Microcontrollers
|
| Device Core:
ARM Cortex-M4F, ARM Cortex-M0+
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
160MHz
|
| Program Memory Size:
1MB
|
| No. of Pins:
64Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
49I/O's
|
| Interfaces:
CAN, I2C, LIN, SPI, UART
|
| RAM Memory Size:
128KB
|
| ADC Channels:
27Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
2.7V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
Traveo T2G
|
| MCU Series:
CYT2B7
|
| Qualification:
-
|
Other details
| Brand |
INFINEON |
| Part Number |
CYT2B73CADQ0AZSGS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
