INFINEON CYPD5235-96BZXI USB Interface, USB Type-C and Power Delivery (PD) Controller, USB 3.1, 2.75 V, 21.5 V, BGA SP005659085, CYPD5235-96BZXI

CYPD5235-96BZXI is a EZ-PD� CCG5 dual USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG5 provides a complete dual USB Type-C and USB-power delivery port control solution for PCs, notebook, and dock. It can also be used in dual role and downstream-facing port applications. EZ-PD CCG5 uses Cypress� proprietary M0WS8 technology with a 32-bit, 48-MHz Arm® Cortex®-M0 processor with 128-KB flash and integrates two complete Type-C transceivers including the Type-C termination resistors, RP and RD. CCG5 also integrates high-voltage regulator. Typical applications are PCs, notebook and dock, thunderbolt hosts and devices.

• Integrated USB power delivery (USB-PD) 3.0 support, two integrated USB-PD Type-C ports
• Integrated dead battery termination for DRP (power source/sink) applications
• Integrated VCONN FETs to power EMCA cables, integrated fast role swap and extended data messaging
• Integrated high-voltage LDO, operational up to 21.5V, 128KB flash, 12KB SRAM
• Integrated 2x USB analog mux, integrated 2x SBU analog mux, integrated OCP protection on the VCONN
• Integrated overvoltage protection (OVP) and overcurrent protection (OCP) on the VBUS
• Integrated current sense amplifier that supports high-side current sensing
• Integrated gate drivers for external VBUS PFET control on type-C ports, 48MHz arm Cortex-M0 CPU

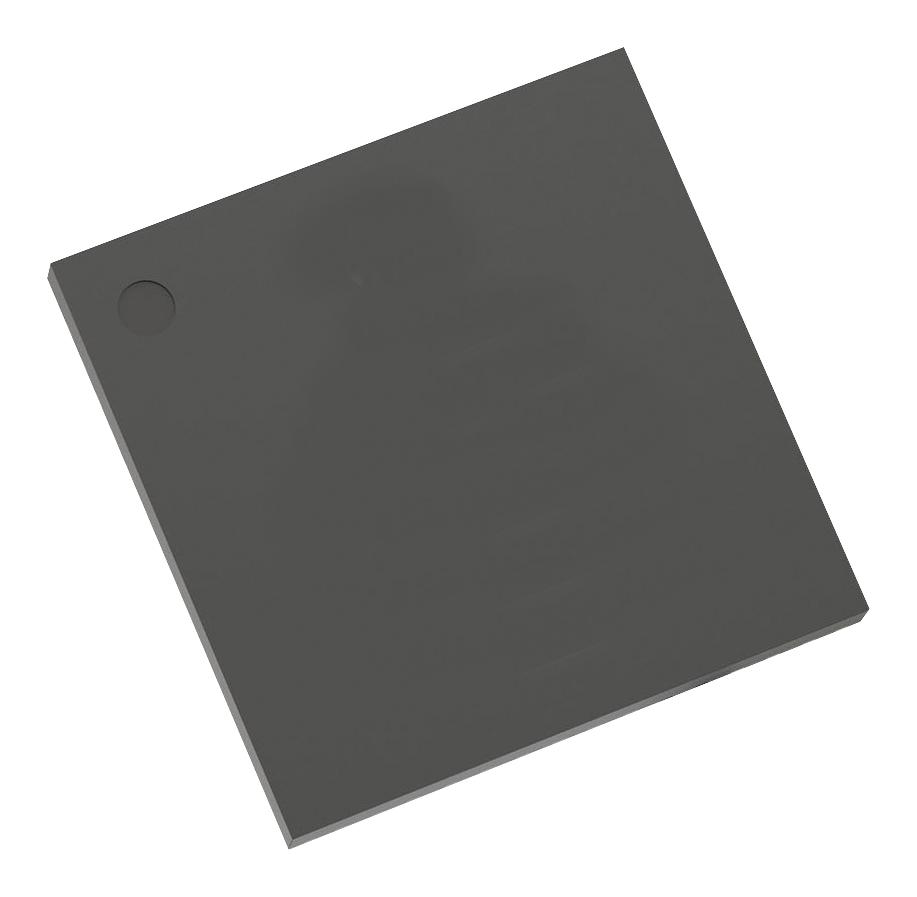

• 96-ball BGA package
• Industrial operating ambient temperature range from �40 to 85°C
