INFINEON CYPD4226-40LQXI USB Interface, USB Type-C and Power Delivery (PD) Controller, USB 3.0, 2.7 V, 5.5 V, QFN-EP SP005659039, CYPD4226-40LQXI

CYPD4226-40LQXI is a EZ-PD� CCG4 dual USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG4 provides a complete dual USB Type-C and USB-power delivery port control solution for notebooks, power adapters and docking stations. It can also be used in dual role and downstream facing port applications. EZ-PD CCG4 uses Cypress�s proprietary M0S8 technology with a 32bit, 48MHz Arm® Cortex®-M0 processor with 128KB flash and integrates two complete Type-C transceivers including the Type-C termination resistors RP and RD. Typical applications are notebooks, desktops.

• 32bit MCU subsystem, 48MHz arm cortex-M0 CPU, 128KB flash, 8KB SRAM
• Up to four integrated timers and counters to meet response times required by the USB-PD protocol
• Integrated oscillator eliminating the need for external clock, 2 integrated USB-PD BMC transceivers
• Integrated USB power delivery 3.0 support (only PD 2.0 support for 33-ball CSP part)
• Integrated dead battery termination for DRP (power source/sink) applications
• Integrated VCONN FETs to power EMCA cables
• Low-power operation is 2.7V to 5.5V, reset: 1.0µA, deep sleep: 2.5µA, sleep: 2.5mA
• Independent supply voltage pin for GPIO that allows 1.71V to 5.5V signalling on the I/Os
• Port 0 I2C pins and CC1, CC2 pins are hot-swappable

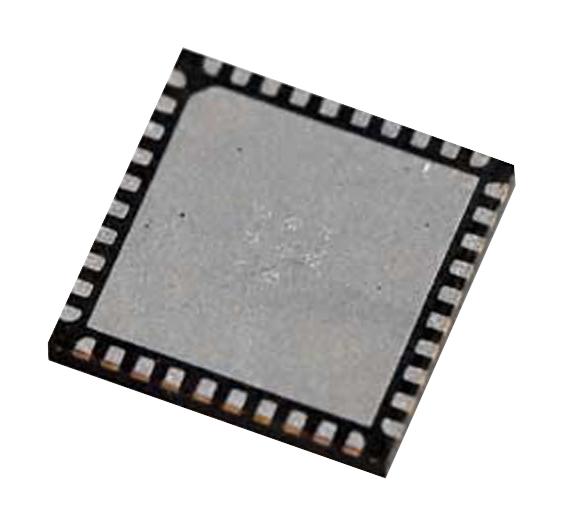

• 40-pin QFN package, 2 Type-C port, 2 TCPWM, dead battery termination
